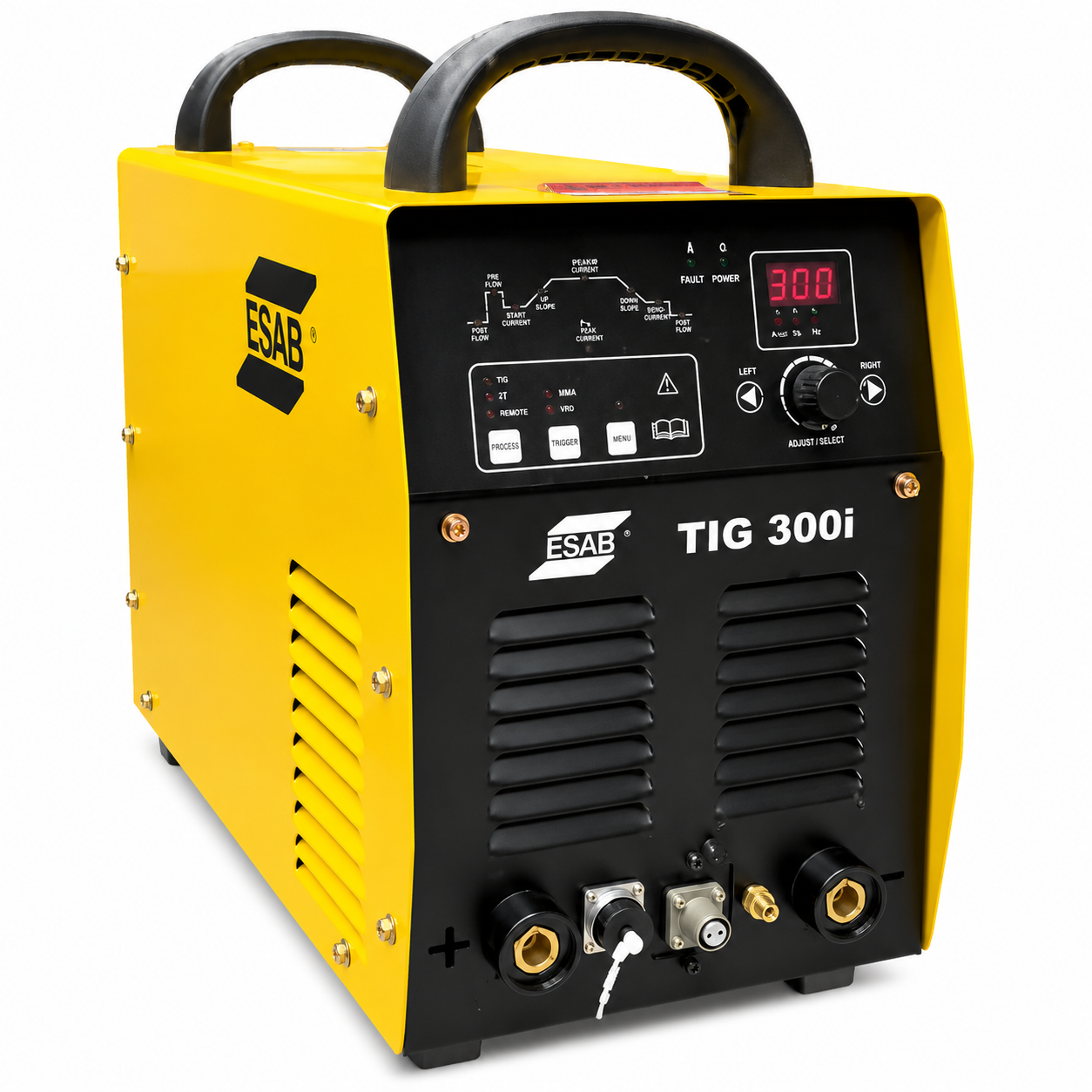

ESAB TIG 300i HF Inverter TIG & MMA Welding Machine

Price:

Rs. 0

Brand: ESAB

Type: WELDING MACHINE

Availability: 25 In Stock

Quantity:

The ESAB TIG 300i is a compact yet heavy-duty IGBT inverter-based TIG and MMA welding machine designed for industrial fabrication, pipe welding, repair, and maintenance applications. Equipped with High Frequency (HF) Arc Start, it provides smooth arc ignition and exceptional welding performance for both TIG and Stick welding.

Advanced welding controls including Pre-Flow, Post-Flow, Start Current, End Current, Up Slope, and Down Slope enable precise heat control, resulting in superior weld quality on stainless steel, mild steel, and alloy materials.

With a robust duty cycle, energy-efficient inverter technology, and comprehensive protection against over-temperature, under-voltage, over-voltage, and single-phasing, the TIG 300i is built for continuous industrial operation.

Key Features

Advanced IGBT Inverter Technology
High Frequency (HF) TIG Arc Start
TIG & MMA (Stick) Welding Capability
Adjustable Gas Pre-Flow & Post-Flow
Start Current & End Current Control
Up Slope & Down Slope Adjustment
Excellent Duty Cycle for Continuous Welding
Compact & Portable Industrial Design
High Power Factor & Energy Efficiency
Over Temperature Protection
Under Voltage & Over Voltage Protection
Single-Phasing Protection
Suitable for Industrial Fabrication & Maintenance

Technical Specifications

Specification	ESAB TIG 300i
Input Voltage	415V ±15%, 3 Phase, 50/60Hz
Maximum Input Current	13 A
Rated Input Capacity	12 kVA
Output Current (TIG)	10–300 A
Output Current (MMA)	10–250 A
Duty Cycle @ 100%	TIG 300 A / MMA 240 A
Open Circuit Voltage	76 V
Power Factor	0.9
Efficiency	≥85%
Protection Class	IP21S
Insulation Class	H
Operating Temperature	-10°C to +40°C
Dimensions (L × W × H)	510 × 275 × 420 mm
Weight	35 kg
Standard	IEC 60974-1
