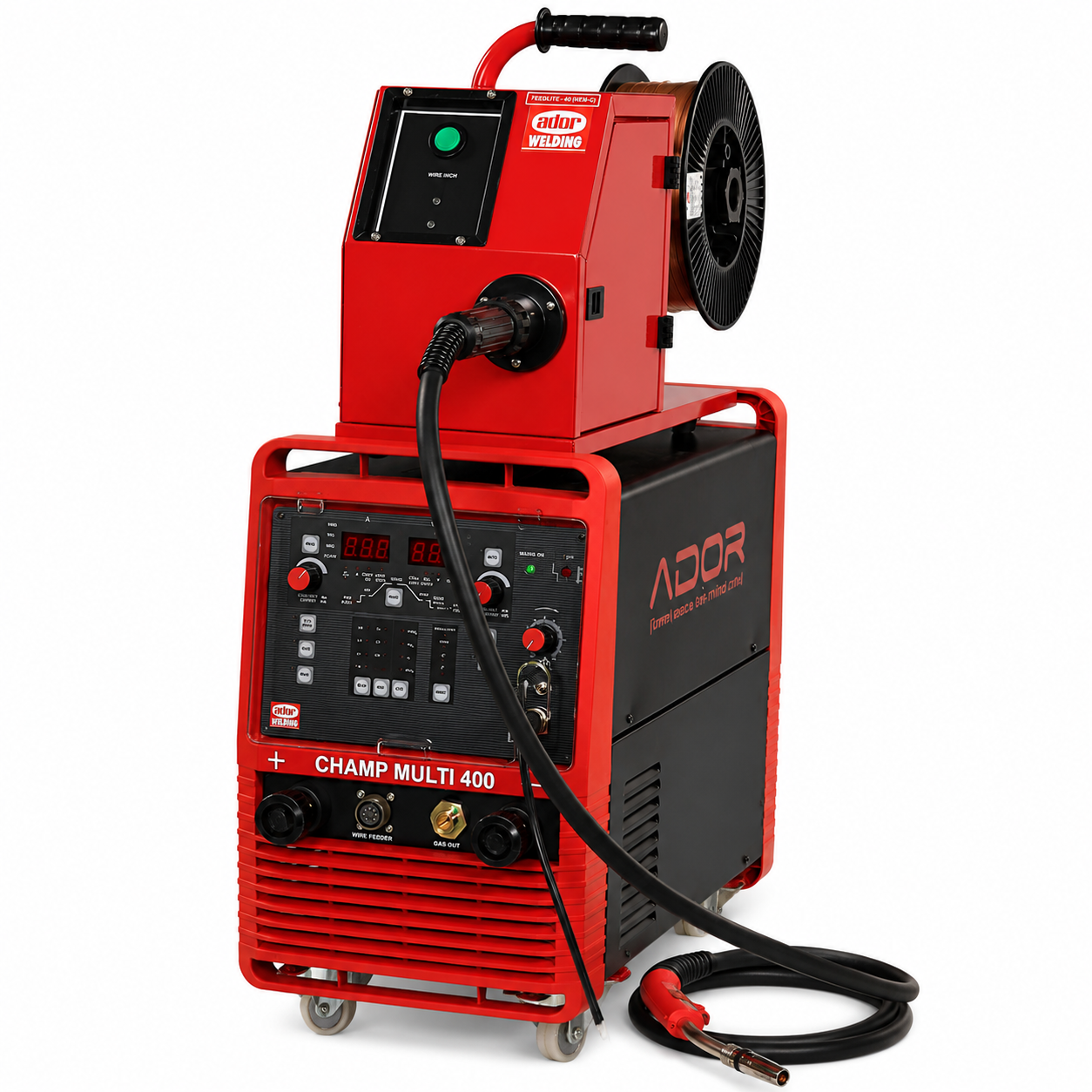

ADOR CHAMP MULTI 400 Multiprocess Welding Machine

ADOR CHAMP MULTI 400 Multiprocess Welding Machine

Rs. 0

Ador

WELDING MACHINE

25 In Stock

Add to wishlist

The ADOR CHAMP MULTI 400 is a high-performance IGBT inverter-based multiprocess welding machine designed for professional fabrication, heavy engineering, pipeline construction, structural steel work, and industrial manufacturing. It supports MIG/MAG, FCAW, MMA (Stick), and DC TIG welding from a single compact power source.

Featuring Constant Current (CC) and Constant Voltage (CV) characteristics, the machine delivers excellent arc stability, superior weld bead finish, and minimal spatter. Its advanced Single Point Synergic Control, digital control panel, and programmable welding memory make setup quick and easy while improving welding productivity.

With built-in protections against over-voltage, under-voltage, single phasing, overheating, and short circuit, the CHAMP MULTI 400 ensures reliable operation in demanding industrial environments.

Key Features

  • IGBT Inverter Technology
  • Multiprocess Welding: MIG/MAG, FCAW, MMA & DC TIG
  • 400 Amp Industrial Welding Output
  • Single Point Synergic Control
  • Constant Current (CC) & Constant Voltage (CV) Output
  • Digital Display with Error Diagnostics
  • 2T / 4T / Spot / Multi-Spot Welding Modes
  • Dynamic Inductance Adjustment (MIG)
  • Arc Force Adjustment (MMA)
  • Crater Current & Voltage Adjustment
  • Pinch-Off Pulse Function
  • Save & Recall up to 10 Welding Programs
  • Forced Air Cooling
  • Built-in Auto Protection System
  • High Efficiency (>85%)
  • IP23S Protection Class

Technical Specifications

Specification Value
Model ADOR CHAMP MULTI 400
Welding Processes MIG/MAG, FCAW, MMA, DC TIG
Technology IGBT Inverter
Input Voltage 415V AC
Input Voltage Range 415V (+15% / -10%)
Phase 3 Phase
Frequency 50–60 Hz
Efficiency >85%
Power Factor 0.82 Max
MIG Welding Current 40–400 A
MMA Welding Current 50–400 A
TIG Welding Current 10–400 A
Rated Output @100% Duty Cycle 310 A
Rated Output @60% Duty Cycle 400 A
MIG Voltage Range 14–40 V
Open Circuit Voltage (MIG) 55 V
Open Circuit Voltage (MMA/TIG) 84 V
Cooling Forced Air
Protection Class IP23S
Insulation Class H
Electrode Size 2.5–5.0 mm
Wire Sizes 0.8 / 1.0 / 1.2 / 1.6 mm
Machine Dimensions 650 × 450 × 570 mm
Auxiliary Output 110V AC Gas Heater Output

Standard Package

  • CHAMP MULTI 400 Power Source
  • FEEDLITE 40 (NEM-C) 4 Roll Wire Feeder
  • MIG Welding Torch
  • Interconnecting Cable Set
  • Control Cable
  • User Manual

Applications

  • Heavy Fabrication
  • Structural Steel
  • Pressure Vessel Manufacturing
  • Pipeline Welding
  • Shipbuilding
  • Industrial Maintenance
  • Stainless Steel Fabrication
  • Aluminium Fabrication
  • Manufacturing Industries
  • Construction Projects
