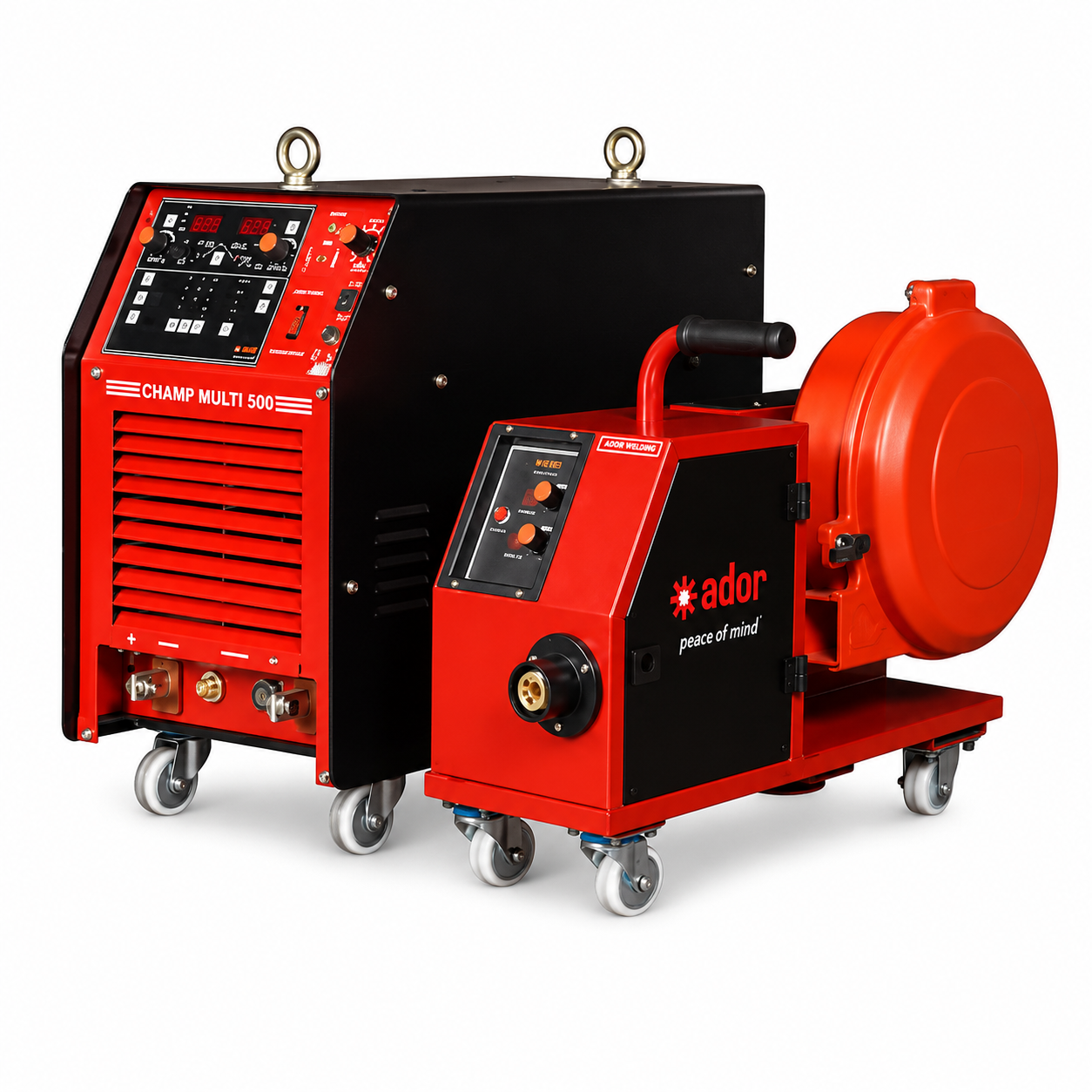

ADOR CHAMP MULTI 500 Multiprocess Welding Machine

ADOR CHAMP MULTI 500 Multiprocess Welding Machine

Rs. 0

Ador

WELDING MACHINE

25 In Stock

Add to wishlist

The ADOR CHAMP MULTI 500 is a heavy-duty 500 Amp IGBT inverter multiprocess welding machine engineered for industrial fabrication, shipbuilding, heavy structural work, pressure vessels, and manufacturing applications. Supporting MIG/MAG, FCAW, MMA (Stick), and DC TIG welding, this versatile machine delivers outstanding welding performance across a wide range of materials.

Equipped with advanced synergic control, digital parameter display, 4-roll wire feeder, and programmable memory functions, the CHAMP MULTI 500 ensures precise arc control, reduced setup time, and consistent weld quality. Built-in protection against under/over voltage, single phasing, overheating, and output short circuit provides maximum reliability in demanding industrial environments

Key Features

  • 500 Amp Industrial Multiprocess Welding Machine
  • MIG/MAG, FCAW, MMA & DC TIG Welding
  • Advanced IGBT Inverter Technology
  • Synergic Welding Control
  • 4-Roll Heavy-Duty Wire Feeder
  • Digital Voltage & Current Displays
  • 2T / 4T / Spot / Multi Spot Modes
  • Save & Recall Welding Programs
  • Arc Force Adjustment (MMA)
  • Crater Current & Crater Voltage Control
  • OCV, Gas Check & Wire Inch Functions
  • Auto / Manual Welding Modes
  • Remote Voltage & Current Control
  • Forced Air Cooling
  • Industrial Wheel-Mounted Design
  • Auto Reset Protection System

Technical Specifications

Specification Value
Model ADOR CHAMP MULTI 500
Welding Processes MIG/MAG, FCAW, MMA, DC TIG
Technology IGBT Inverter
Input Voltage 415V AC
Input Supply 3 Phase, 50/60 Hz
Input Voltage Range +15% / -10%
MIG/FCAW Current Range 65–500 A
MMA Current Range 50–500 A
TIG Current Range 10–500 A
MIG/FCAW Voltage Range 14–44 V
Duty Cycle 500A @ 60%, 387A @ 100%
Open Circuit Voltage 65V (MIG/FCAW), 70V (MMA/TIG)
Efficiency >87%
Power Factor 0.93
Electrode Size 2.5–6.0 mm
Wire Sizes 0.8 / 1.0 / 1.2 / 1.6 mm
Cooling Forced Air
Protection Class IP23(S)
Insulation Class H
Wire Drive 4 Roll
Wire Feed Speed 1.5–18 m/min
Wire Spool Capacity 15 kg
Machine Dimensions 700 × 460 × 650 mm
Machine Weight Approx. 57 kg

Standard Accessories

  • CHAMP MULTI 500 Power Source
  • FEEDLITE 40 Heavy-Duty 4-Roll Wire Feeder
  • MIG Welding Torch
  • Interconnecting Cable Set
  • Earth Clamp with Cable
  • Gas Hose
  • User Manual

Applications

  • Heavy Fabrication
  • Structural Steel
  • Pressure Vessel Manufacturing
  • Shipbuilding
  • Pipeline Construction
  • Industrial Maintenance
  • Steel Fabrication
  • Heavy Engineering
  • Manufacturing Plants
  • Automotive & Equipment Fabrication
