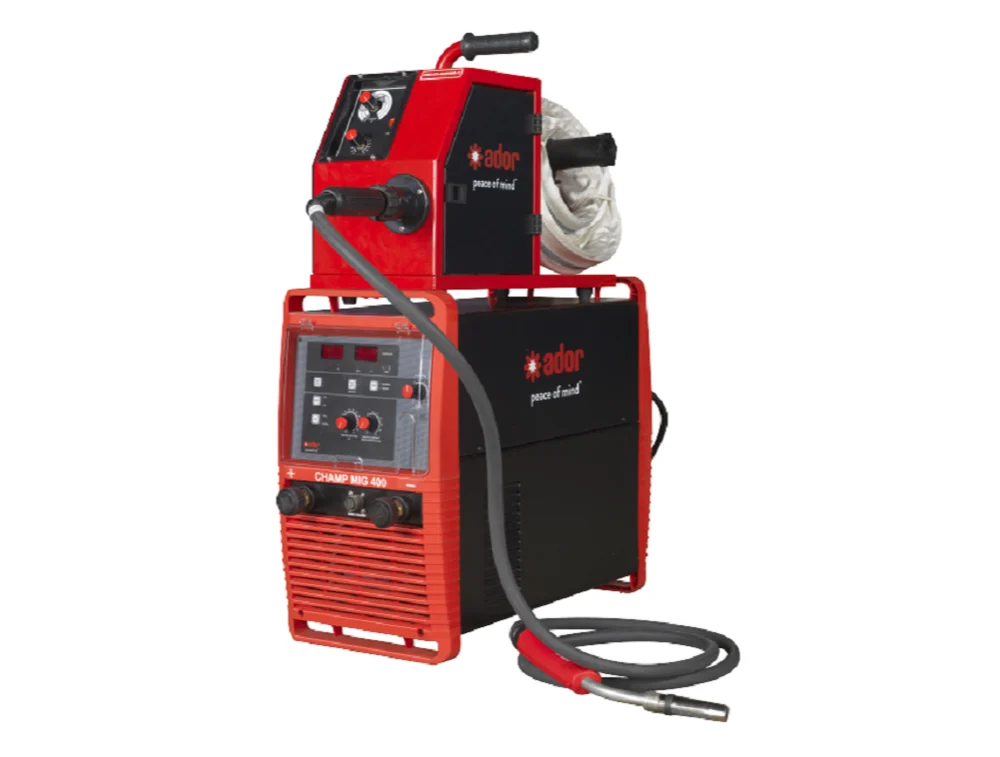

ADOR CHAMP MIG 400 IGBT MIG Welding Machine

ADOR CHAMP MIG 400 IGBT MIG Welding Machine

Rs. 87,000

Ador

WELDING MACHINE

25 In Stock


The ADOR CHAMP MIG 400 is a heavy-duty IGBT inverter-based MIG/GMAW welding machine designed for fabrication shops, structural work, automotive industries, and industrial maintenance. Built with advanced inverter technology, it delivers stable arc performance, high efficiency, and excellent welding characteristics for continuous production environments.

The complete system includes power source, 4-roll wire feeder, gas-cooled torch, and interconnecting cables, making it a reliable solution for professional MIG welding applications.

Key Features

  • 400A output at 60% duty cycle
  • IGBT inverter technology for superior efficiency
  • Digital control panel for precise welding adjustment
  • 2T / 4T welding modes
  • Dynamic inductance control for improved arc characteristics
  • Crater voltage & current adjustment
  • Pinch-off pulse feature to reduce globule formation
  • Automatic weld stop function
  • Forced-air cooling system
  • Single phasing, over-voltage, under-voltage & over-temperature protection

Technical Specifications

Specification Details
Model ADOR CHAMP MIG 400
Welding Process MIG / GMAW
Technology IGBT Inverter
Input Voltage 415V AC (+15%, -10%), 3 Phase, 50/60Hz
Rated Input Power 12.0 kVA @ 100% Duty Cycle
Power Factor 0.93 (Max.)
Efficiency 87% @ 100% Duty Cycle
Open Circuit Voltage (OCV) 65V DC (±5%)
Welding Voltage Range 16 – 39V DC
Output Current Range 50 – 400A DC
Rated Output Current 400A @ 60% Duty Cycle
Rated Output Current 310A @ 100% Duty Cycle
Operating Modes 2T / 4T
Cooling System Forced Air Cooling
Insulation Class H Class
Protection Features Under Voltage, Over Voltage, Over Temperature, Single Phasing Protection
Wire Feeder Model Feedlite 40 NEMR-C (4 Roll)
Wire Feed Speed 1.5 – 18 m/min
Wire Drive Four Roll Drive
Suitable Wire Sizes 0.8 / 1.0 / 1.2 mm
Wire Spool Capacity 15 kg
Wire Feeder Motor Voltage 42V DC
Wire Feeder Motor Type Permanent Magnet DC Motor
Torch Supplied Hipro 403(e), 3 Meter
Machine Dimensions (L × W × H) 700 × 450 × 600 mm
Machine Weight Approx. 44 kg
Wire Feeder Dimensions (L × W × H) 563 × 230 × 410 mm
Wire Feeder Weight Approx. 16 kg (Without Spool)
Compliance Standard IEC EN 60974-1
Warranty 1 Year Manufacturer Warranty

Applications

  • Fabrication workshops
  • Structural steel work
  • Automotive manufacturing
  • Industrial maintenance
  • Heavy engineering
  • Continuous production welding

What’s in the Box?

  • CHAMP MIG 400 Power Source
  • 4-Roll Wire Feeder
  • MIG Torch (3 Meter)
  • Interconnecting Cables
  • User Manual
