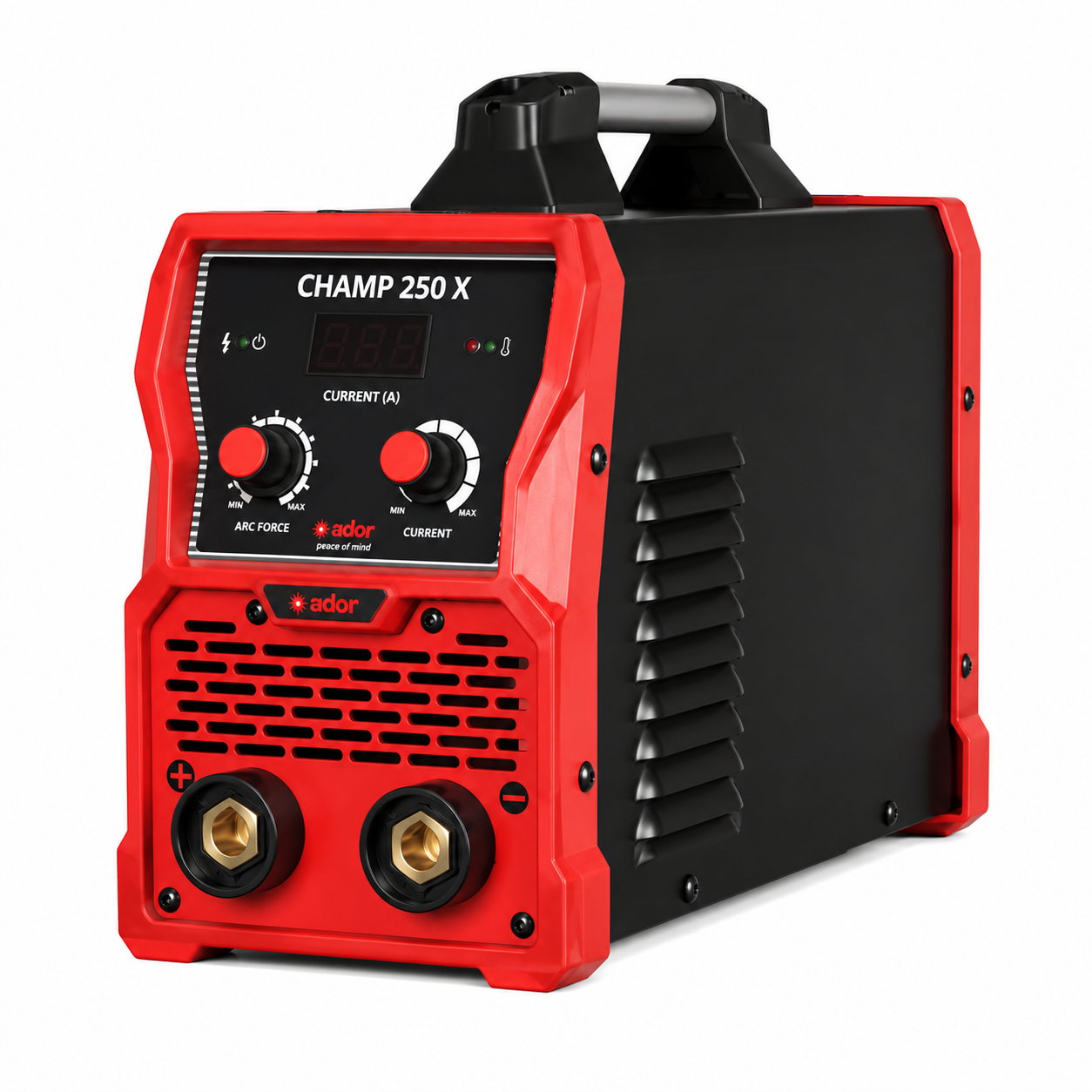

ADOR CHAMP 250 X Single Phase Inverter DC ARC Welding Machine 250A

Price:

Rs. 0

Brand: Ador

Type: WELDING MACHINE

Availability: 25 In Stock

Quantity:

The ADOR CHAMP 250 X is a rugged 250 Amp inverter-based DC welding machine designed for professional MMA (Stick) welding applications. Built with advanced inverter technology, it delivers stable arc performance, excellent weld quality, and reliable operation for fabrication workshops, maintenance work, construction sites, and industrial applications.

Its compact and lightweight design, combined with adjustable Arc Force, Anti-Stick function, and digital current display, ensures smooth welding performance with low maintenance requirements.

Key Features

250 Amp Single Phase Inverter DC Welder
Advanced Inverter Technology
Suitable for MMA (Stick) Welding
Stable & Smooth Arc Performance
Adjustable Arc Force Control
Anti-Stick Function
3-Digit Digital Current Display
Compact & Portable Design
Forced Air Cooling System
IP21S Protection Class
Over Voltage Protection
Under Voltage Protection
Over Current Protection
Over Temperature Protection
Easy-to-Carry Top Handle
Ideal for Industrial & Fabrication Applications

Applications

Steel Fabrication
Structural Welding
Repair & Maintenance
Workshops
Construction Sites
Agricultural Equipment Repair
General Engineering

Technical Specifications

Specification	Details
Brand	ADOR
Model	CHAMP 250 X
Machine Type	Inverter DC ARC Welder
Welding Process	MMA (Stick)
Input Voltage	240V AC (+10%, -15%)
Phase	Single Phase
Frequency	50 Hz
Rated Input Power	9.2 kVA
Output Current Range	20–250A
Duty Cycle	250A @ 40%, 195A @ 100%
Open Circuit Voltage	75V ±5V DC
Suitable Electrode Size	2.5mm, 3.2mm, 4.0mm & 5.0mm
Efficiency	86%
Arc Force	Adjustable
Display	3-Digit Digital Display
Cooling	Forced Air
Protection Class	IP21S
Insulation Class	H
Dimensions	410 × 170 × 290 mm
Weight	Approx. 6.5 kg
