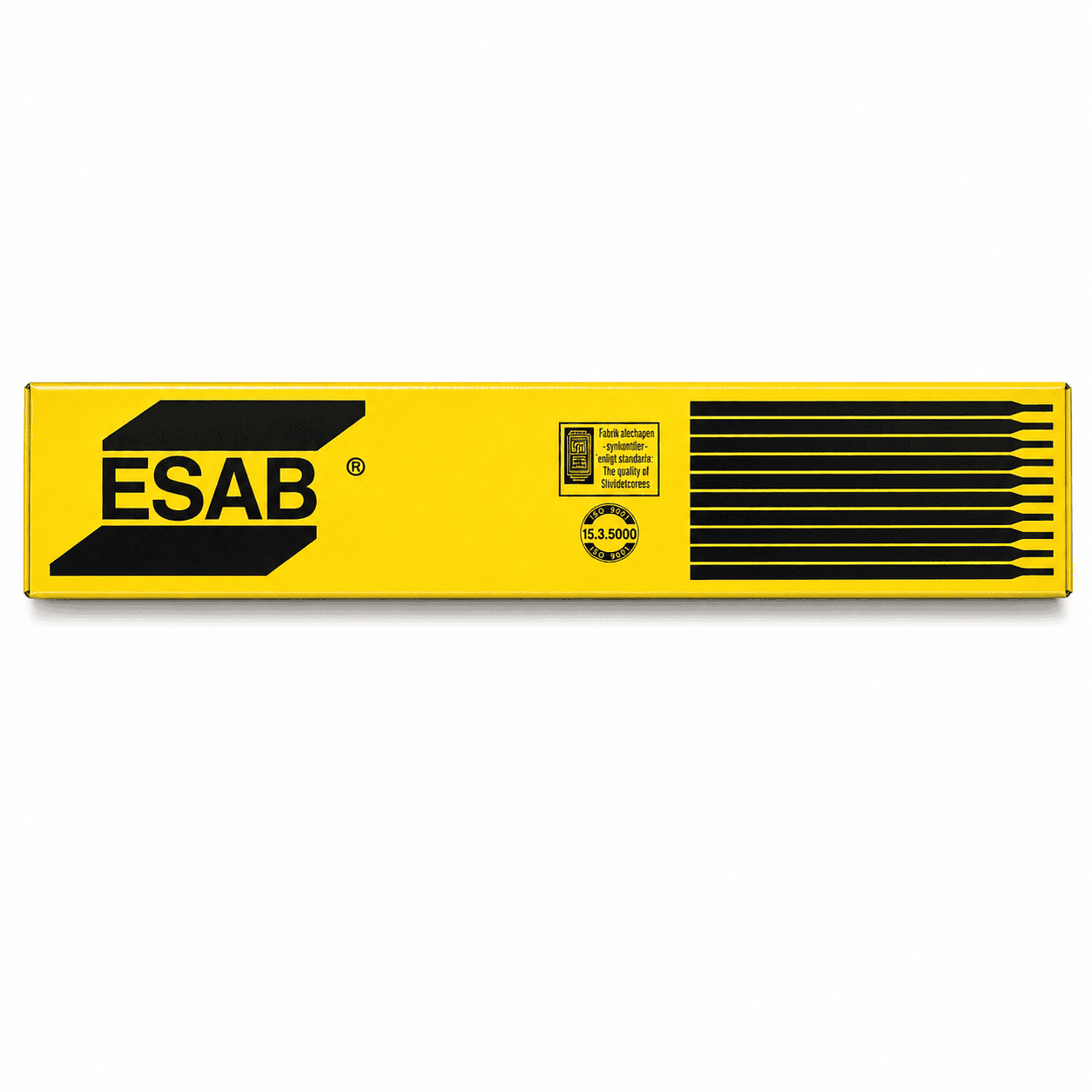

ESAB FERROAMP Mild Steel Stick Electrode (E6013)

ESAB FERROAMP Mild Steel Stick Electrode (E6013)

Rs. 0

ESAB

WELDING ELECTRODES

501 In Stock

ESAB FERROAMP is a medium-coated, general-purpose mild steel stick electrode designed for SMAW (Shielded Metal Arc Welding) applications. It provides a smooth and stable welding arc with low spatter, excellent slag detachability, and a smooth weld bead appearance. The electrode is suitable for welding in all positions and can operate on low OCV 50V AC. The weld deposit offers radiographic-quality performance.

Key Features

  • General-purpose mild steel welding electrode
  • AWS A5.1 E6013 classification
  • IS 814 ER4211X classification
  • Rutile-coated electrode
  • Suitable for all welding positions
  • Works with AC and DC+/- current
  • Minimum AC OCV: 50V
  • Smooth and stable arc performance
  • Low spatter during welding
  • Easy slag removal
  • Produces smooth weld beads
  • Radiographic-quality weld deposit

Technical Specifications

Specification Details
Product Name ESAB FERROAMP
Product Type Mild Steel Stick Electrode
Welding Process SMAW
Classification AWS A5.1: E6013
IS Classification IS 814: ER4211X
Alloy Type C-Mn
Coating Type Rutile
Welding Current AC, DC+/-
Minimum AC OCV 50 V

Electrode Sizes & Current Range

Electrode Size Current Range
2.5 × 350 mm 50–80 A
3.15 × 350 mm 70–120 A
3.15 × 450 mm 70–120 A
4.0 × 450 mm 90–170 A
5.0 × 450 mm 150–260 A

Typical Weld Metal Properties

  • Yield Strength: 420 MPa
  • Tensile Strength: 500 MPa
  • Elongation: 26%
  • Charpy V-Notch Impact Value: 80 J at 0°C

Applications

ESAB FERROAMP is suitable for general-purpose mild steel welding applications where a stable arc, low spatter, easy slag removal, and good weld bead appearance are required.
