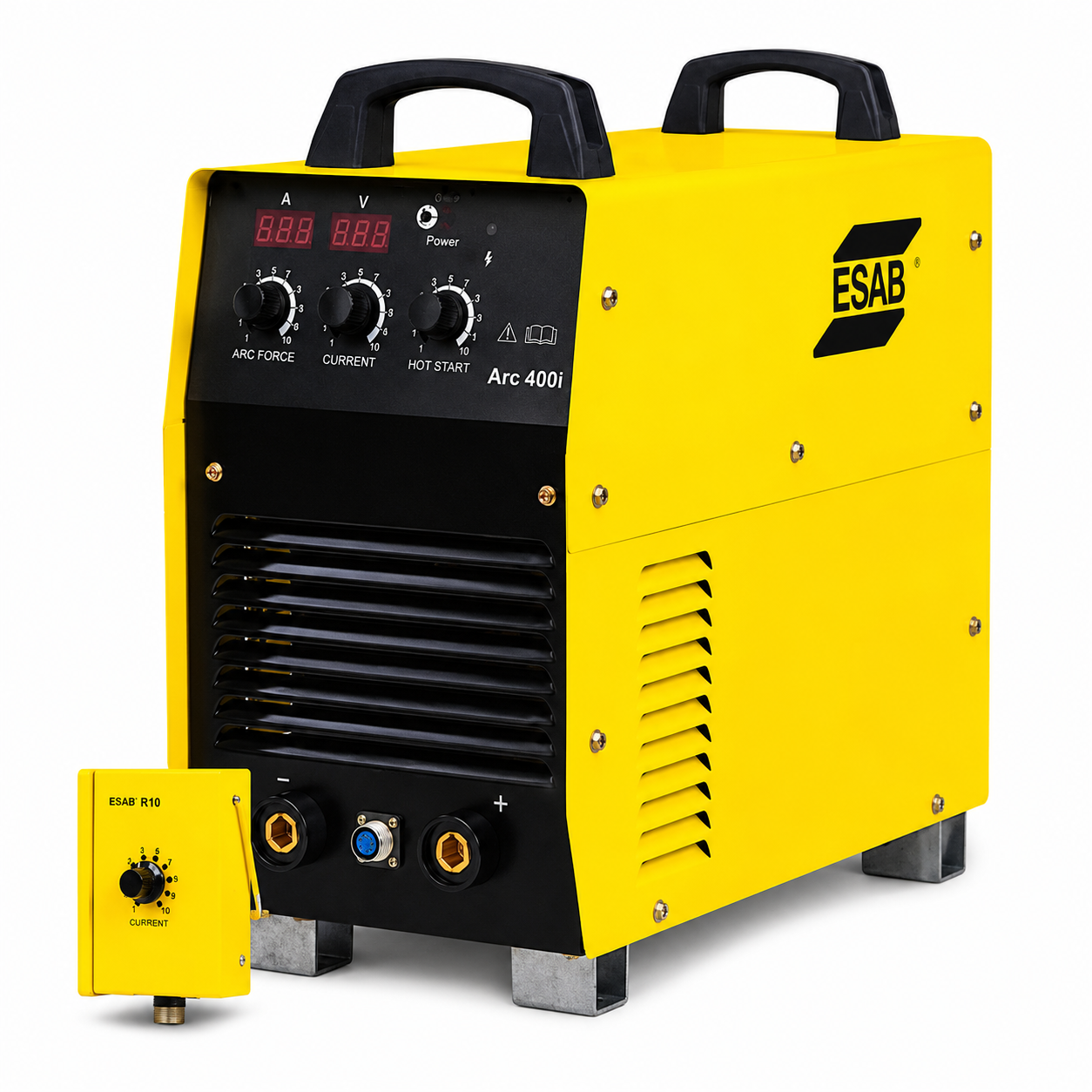

ESAB Arc 400i Industrial Inverter MMA Welding Machine

Price:

Rs. 46,500

Brand: ESAB

Type: WELDING MACHINE

Availability: 25 In Stock

Default Title

Quantity:

The ESAB Arc 400i is a compact, industrial-grade IGBT inverter MMA welding machine engineered for heavy-duty welding applications. Designed for fabrication, construction, repair, and maintenance, it delivers a stable arc, outstanding energy efficiency, and reliable performance even under demanding site conditions.

Featuring adjustable Hot Start and Arc Force, wide mains voltage tolerance, and advanced protection against over-temperature, under-voltage, over-voltage, and single-phasing, the Arc 400i ensures smooth welding performance with all types of MMA electrodes. Its lightweight, portable design makes it ideal for workshop and field applications.

Key Features

Advanced IGBT Inverter Technology
400 Amp Industrial MMA Welding Machine
Compact & Lightweight Design
Adjustable Hot Start
Adjustable Arc Force
Wide Input Voltage Tolerance
Stable Arc Performance
High Energy Efficiency
High Power Factor
Forced Air Cooling System
Over-Temperature Protection
Under-Voltage Protection
Over-Voltage Protection
Single-Phasing Protection
Ideal for Continuous Industrial Welding

Technical Specifications

Specification	ESAB Arc 400i
Input Voltage	400V ±15%, 3 Phase, 50Hz
Maximum Input Power	16 kVA
Output Current Range	60–400 A
Duty Cycle @ 60%	400 A
Duty Cycle @ 100%	310 A
Open Circuit Voltage	74 V
VRD Voltage	<35 V
Power Factor	0.90
Efficiency	85%
Cooling	Forced Air
Hot Start	Adjustable
Arc Force	Adjustable
Protection Class	IP21S
Insulation Class	H
Dimensions (L × W × H)	512 × 255 × 400 mm
Weight	24.5 kg
