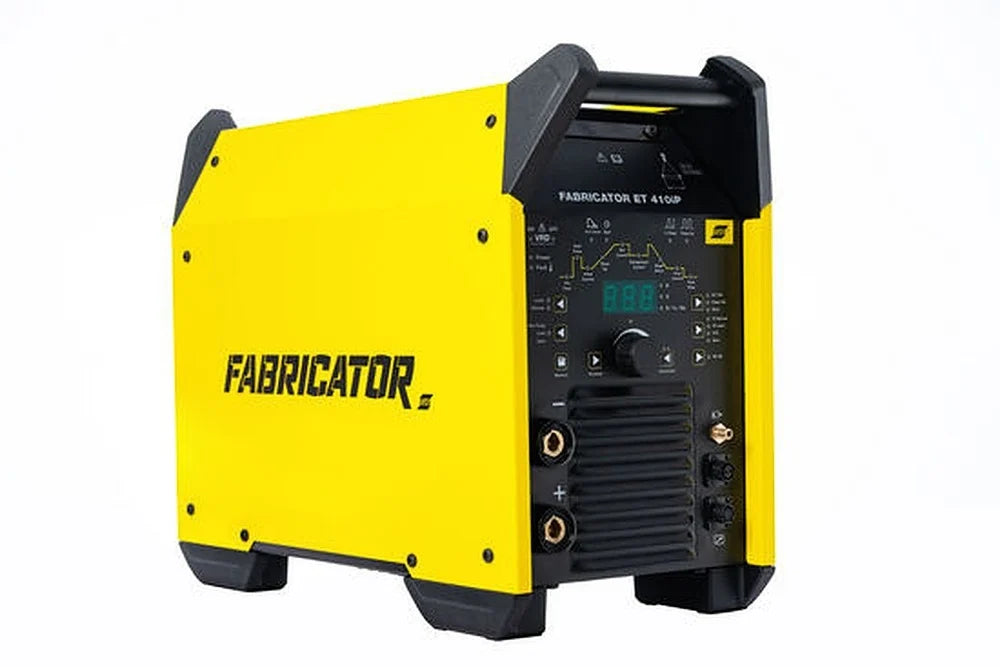

ESAB Fabricator ET 410iP HF TIG & MMA Industrial Inverter Welding Machine

ESAB Fabricator ET 410iP HF TIG & MMA Industrial Inverter Welding Machine (410A)

Price:

Rs. 131,000

Brand: ESAB

Type: WELDING MACHINE

Availability: 25 In Stock

Default Title

Quantity:

The ESAB Fabricator ET 410iP is a powerful and reliable HF TIG + MMA inverter welding machine designed for demanding industrial applications. Built with advanced IGBT inverter technology, it delivers precision welding performance for heavy fabrication, pipe workshops, oil & gas industries, and shipyards.

With its intuitive control panel, high-frequency arc starting, and advanced pulse settings, this machine ensures clean, stable, and high-quality welds every time.

Key Features

⚙️ HF TIG & MMA Welding Capability – Versatile for multiple welding applications
🔥 High Frequency Arc Start – Smooth, contactless ignition
🎯 Advanced Pulse Control – Adjustable frequency (0.5–250 Hz) for precision welding
🧠 User-Friendly Interface – Easy-to-set parameters for all skill levels
🛡️ VRD Safety Feature – Enhanced operator protection
⚡ Wide Voltage Tolerance – Stable performance in fluctuating power conditions
🏗️ Heavy-Duty Design – Built for industrial environments
💡 Spot & 4TS Modes – Ideal for tack welding and pulsed operations

Technical Specifications

Parameter	Details
Input Power Supply	400V ±20%, 3 Phase, 50/60 Hz
Fuse (Slow Blow)	32 A
Rated KVA	21 KVA
Output Current Range (TIG)	5 – 410 A
Output Current Range (MMA)	30 – 410 A
Duty Cycle @ 60%	410 A
Duty Cycle @ 100%	310 A
Open Circuit Voltage	76 V
VRD Voltage (Max)	15 V
Idle Power Consumption	40 W (VRD OFF) / 15 W (VRD ON)
Pulse Frequency	0.5 – 250 Hz
Pulse Background Current	10% – 90%
Efficiency	> 85%
Protection Class	IP23S
Operating Temperature	-10°C to +40°C
Weight	38.5 kg
Dimensions (L × W × H)	525 × 280 × 475 mm
Standards Compliance	IEC 60974-1
