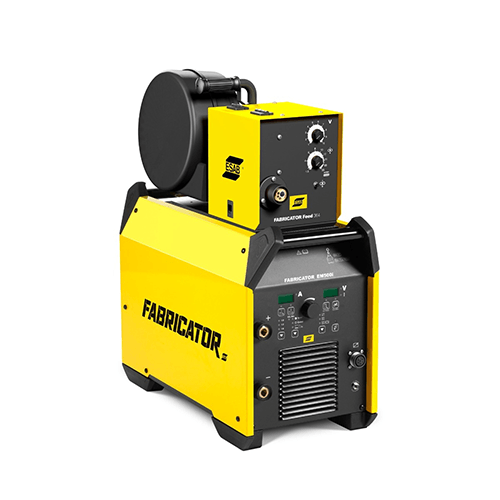

ESAB Fabricator EM 500i MIG/MMA Welding Machine

Price:

Rs. 147,500

Brand: ESAB

Type: WELDING MACHINE

Availability: 25 In Stock

Default Title

Quantity:

High-Performance Industrial Welding Solution

The ESAB Fabricator EM 500i is a powerful and reliable MIG/MMA inverter welding machine designed for heavy-duty industrial applications. Built with advanced inverter technology, it delivers consistent arc performance, high efficiency, and durability for professional welders.

Key Features

✔️ Dual Process: MIG & MMA Welding
✔️ Output Current Range: 30A – 500A
✔️ High Duty Cycle: 500A @ 60%, 390A @ 100%
✔️ Energy Efficient: Up to 87% efficiency
✔️ Stable Arc Performance with Power Factor 0.93
✔️ Robust 4-Roll Wire Feed System
✔️ Supports MS, SS, Aluminum & Flux-Cored Wires
✔️ Industrial Grade Build – IP23S Protection

Applications

Heavy fabrication workshops
Structural steel welding
Shipbuilding & repair
Automotive & manufacturing industries
Industrial maintenance

Technical Specifications

Parameter	Details
Model	Fabricator EM 500i
Brand	ESAB
Processes	MIG / MMA
Input Voltage	380 – 440 V
Phase	3 Phase
Frequency	50 / 60 Hz
Input Current (Max)	28 A
Output Current Range	30 – 500 A
Output Voltage (MIG)	15.5 – 39 V
Duty Cycle @ 40°C	500A @ 60%, 390A @ 100%
Efficiency	87%
Power Factor	0.93
Wire Feed Speed	2.0 – 20.0 m/min
Wire Diameter Range	0.8 – 1.6 mm
Spool Capacity	18 kg
Max Spool Diameter	300 mm
Insulation Class	H
Protection Class	IP23S
Dimensions (L×W×H)	710 × 325 × 470 mm
Weight	62 kg
