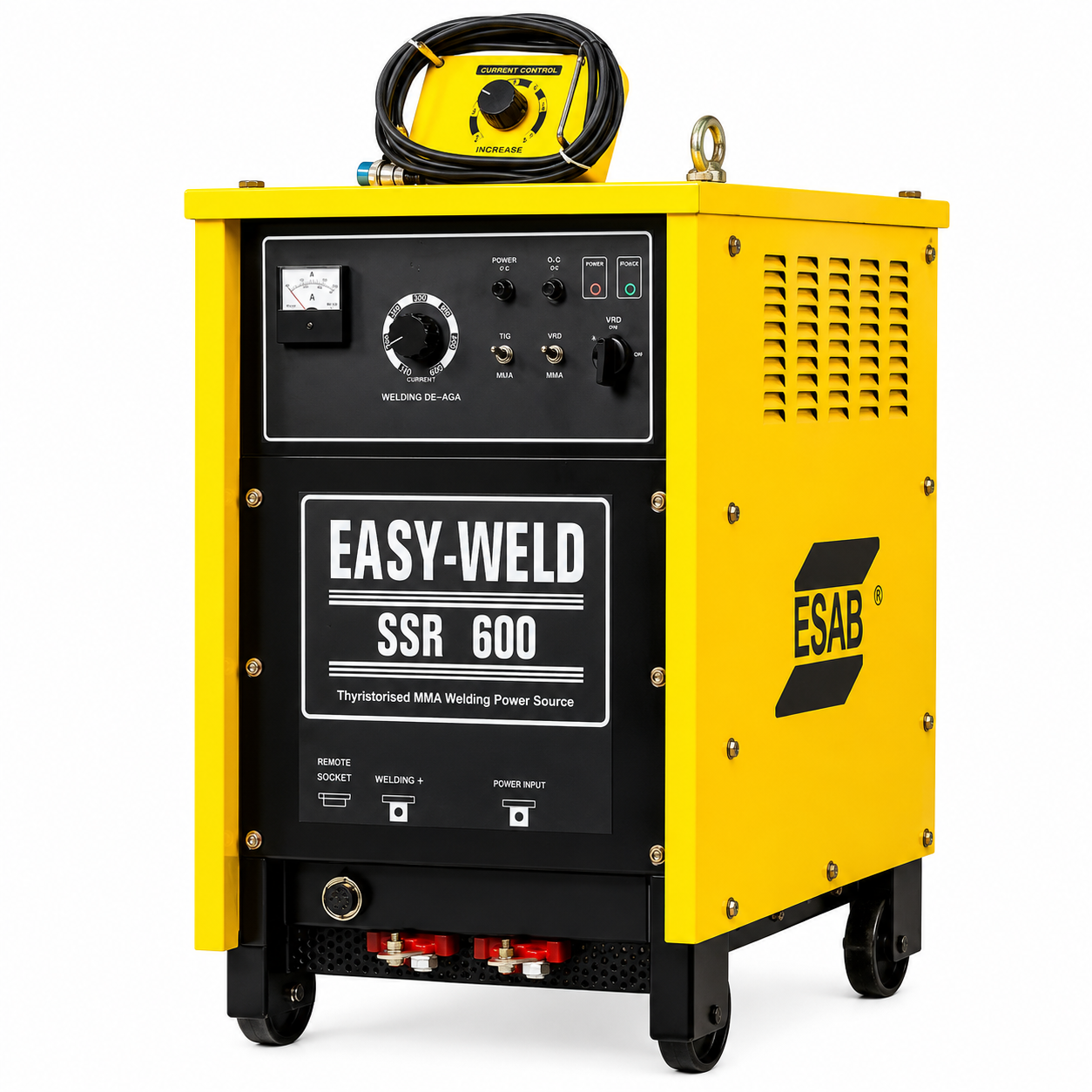

ESAB EasyWeld SSR 600 Fully Thyristorised MMA Welding Rectifier

Price:

Rs. 107,500

Brand: ESAB

Type: WELDING MACHINE

Availability: 25 In Stock

Quantity:

The ESAB EasyWeld SSR 600 is a high-performance fully thyristorised MMA welding rectifier designed for heavy-duty industrial welding applications. Built with advanced solid-state technology, it delivers a stable, ripple-free DC output that ensures exceptional weld quality, deep penetration, and minimal spatter.

Engineered for demanding industries such as power plants, shipbuilding, heavy fabrication, mining, structural steel, and offshore construction, the SSR 600 offers outstanding reliability, stepless current control, remote operation capability, and superior protection against voltage fluctuations and thermal overload. It is also suitable for precision TIG welding with the appropriate accessories.

Key Features

Fully Thyristorised industrial welding rectifier
600 Amp heavy-duty DC welding output
Six-phase ripple-free DC output for premium weld quality
Excellent arc stability with minimal spatter
Built-in Hot Start for easy arc ignition
Prevents electrode sticking and freezing
Remote current control facility
Stepless welding current adjustment
Protection against overload, thermal overload, and HF interference
Performs reliably under AC voltage fluctuations
Rugged industrial construction for continuous operation
Lightweight yet durable design
Suitable for outdoor and project-site applications
Compatible with TIG welding accessories

Technical Specifications

Specification	Details
Brand	ESAB
Model	EasyWeld SSR 600
Machine Type	Fully Thyristorised MMA Welding Rectifier
Welding Process	MMA (Stick), TIG (with accessories)
Input Voltage	415V AC ±10%, 3 Phase, 50Hz
Rated Input Capacity	40 kVA
Primary Current	55 A
Open Circuit Voltage	100V DC
Welding Current Range	10–600 A DC
Rated Output @60% Duty Cycle	600 A DC
Continuous Output @100% Duty Cycle	470 A DC
Current Control	Stepless
Insulation Class	Class H
Remote Controller	RCU-SSR-600
Dimensions (L × W × H)	615 × 455 × 850 mm
Net Weight	Approx. 160 kg

Applications

Heavy Steel Fabrication
Shipbuilding & Offshore Fabrication
Nuclear Power Plants
Thermal & Hydro Power Projects
Chemical Processing Plants
Mining Industry
Structural Steel Construction
Pressure Vessel Manufacturing
Steel Plants
Cement Plants
Industrial Maintenance
Heavy Engineering Workshops

Why Choose ESAB EasyWeld SSR 600?

The ESAB EasyWeld SSR 600 is built for professionals who require dependable performance in the toughest industrial environments. Its high-duty-cycle operation, ripple-free DC output, advanced thyristor technology, and robust construction ensure consistent welding performance, making it the ideal solution for high-production fabrication and critical welding applications.
