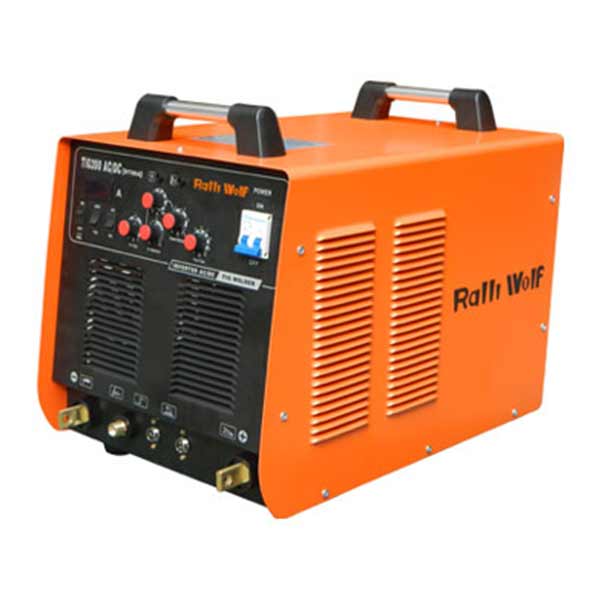

Ralli Wolf RT20A TIG 200 AC/DC Inverter Welding Machine with MMA Function (Single Phase)

Ralli Wolf RT20A TIG 200 AC/DC Inverter Welding Machine with MMA Function (Single Phase)

Rs. 0

RALLI WOLF

WELDING MACHINE

20 In Stock

The Ralli Wolf RT20A (TIG 200 AC/DC) is a light and compact TIG welding machine that combines AC/DC TIG and MMA welding functions in a single, easy-to-carry unit. With high frequency ignition, superior arc performance, and a post-flow function, it delivers clean, stable welds while economising tungsten use through its stable output and high duty cycle. The AC/DC capability makes it suitable for welding both aluminium and steel/stainless steel from the same machine. Running on a single-phase 220V supply, the RT20A is ideal for workshops and professionals who need reliable, versatile welding without the bulk of larger 3-phase machines. Backed by Ralli Wolf Industries Ltd. (formerly Ralli Engineering Ltd.) and its ISO 9001:2015 certified manufacturing, the RT20A comes complete with standard TIG and MMA accessories, ready to use out of the box.

KEY FEATURES

  • High frequency ignition
  • Superior arc performance
  • Post-flow function
  • Light and compact, easy to carry and use
  • Economises tungsten use with a stable output and high duty cycle
  • AC/DC TIG capability plus MMA welding function in one machine
  • MOSFET inverter technology

TECHNICAL SPECIFICATION

Specification Value
Product Type TIG 200 AC/DC
Model RT20A
Input Voltage AC 220V ± 15%, Single Phase
Rated Input Current 28.2/43.6 A
Power (KVA) 6.2/9.59
No-Load Voltage 54 V
Output Current 10–200 A
Rated Output Voltage 28 V
Duty Cycle 60%
No-Load Loss 80 W
Efficiency 80%
Power Factor 0.73
Pre-Flow 2 Sec
Post-Flow 0–2.5 Sec
Arcing Way High Frequency
Net Weight 22.1 kg
MMA Function Available
Inverter Technology MOSFET
Frequency 50/60 Hz
Standard Accessories TIG torch cable and MMA electrode holder cable

APPLICATION

  • Aluminium welding (AC TIG)
  • Steel and stainless steel welding (DC TIG)
  • MMA (Stick) welding for general fabrication
  • Light to medium workshop use
  • Single-phase power environments
  • Jobs requiring both AC/DC TIG and MMA capability from one machine

WHY CHOOSE THIS (Ralli Wolf RT20A)

  • AC/DC TIG capability allows welding on both aluminium and steel/stainless steel
  • Combines TIG and MMA welding functions in a single compact unit
  • High frequency ignition ensures smooth, reliable arc starts
  • Post-flow function protects the weld pool and tungsten electrode after welding stops
  • Economises tungsten use while maintaining stable output and high duty cycle
  • Runs on standard single-phase 220V supply, no 3-phase power required
  • Comes with standard TIG and MMA accessories included
  • Backed by Ralli Wolf Industries Ltd.'s trusted engineering and ISO 9001:2015 certification
