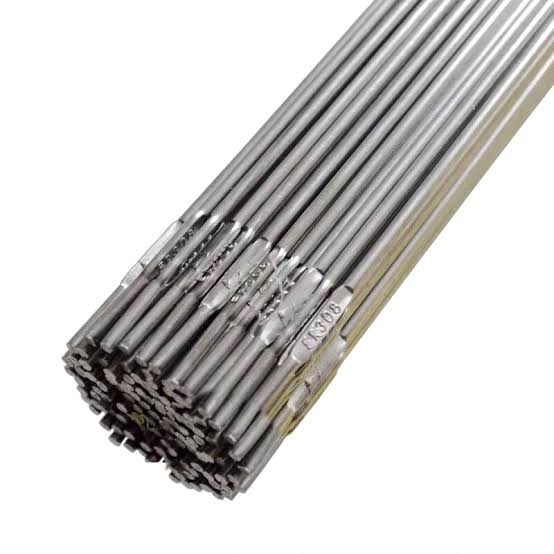

ALFA ER308 Stainless Steel TIG Filler Rod

ALFA 308 ER308 Stainless Steel TIG Filler Rod

Rs. 0

ALFA

Tig Welding Wire

1000 In Stock

ALFA ER308 Stainless Steel TIG Filler Rod

ALFA 308 / ER308 is an extra-low-carbon austenitic stainless steel filler rod designed for welding 19/10 austenitic stainless steel. Its low carbon content provides excellent resistance to intergranular corrosion.

The weld deposit offers corrosion and scale resistance, is specified as free from porosity, and can meet X-ray/radiographic quality requirements. It also provides good resistance to oxidizing and reducing acids.

Key Features

  • ALFA 308 / ER308
  • Extra-low-carbon austenitic stainless steel filler rod
  • 19/10 stainless steel filler rod
  • Excellent resistance to intergranular corrosion
  • Corrosion and scale-resistant weld deposit
  • Good resistance to oxidizing and reducing acids
  • Suitable for radiographic-quality welds
  • Suitable for plates, sheets, pipes, and tubes
  • Argon shielding gas

Product Specifications

Specification Details
Brand ALFA
Product Name ALFA 308
Identification ALFA 308 / ER308
Product Type Stainless Steel TIG Filler Rod
Classification AWS / SFA 5.9 ER 308
Material Type Extra-Low-Carbon Austenitic Stainless Steel
Shielding Gas Argon, 99.99%
Gas Flow Rate 6–12 L/min
Tensile Strength 550 MPa Min
Elongation 35% Min
Standard Length 1000 mm
Available Sizes 1.6 mm, 2.0 mm, 2.40 mm, 2.50 mm, 3.15 mm, 3.20 mm
Packing per Packet 5 kg
Packing per Box 20 kg (5 × 4)

Chemical Composition

Element Range
Carbon (C) 0.08% Max
Manganese (Mn) 1.0–2.5%
Silicon (Si) 0.30–0.65%
Sulphur (S) 0.020% Max
Phosphorus (P) 0.030% Max
Chromium (Cr) 19.5–22%
Copper (Cu) 0.50% Max
Molybdenum (Mo) 0.50% Max
Nickel (Ni) 9.0–11.0%

Typical Applications

ALFA 308 is suitable for welding 19/10 austenitic stainless steel plates, sheets, pipes, and tubes, including:

  • AISI 301
  • AISI 302
  • AISI 304
  • AISI 304L
  • Chemical plants
  • Fertilizer plants
  • Oil refineries
  • Food industries
  • Dairy industries

It can also be used for welding stabilized stainless steel 347 and 321, provided service temperatures for structural applications are below 400°C. The datasheet also lists furniture, hospital, and kitchen equipment applications.

Packing Details

Size Length Packing / Packet Packing / Box
1.6 mm 1000 mm 5 kg 20 kg
2.0 mm 1000 mm 5 kg 20 kg
2.40 / 2.50 mm 1000 mm 5 kg 20 kg
3.15 / 3.20 mm 1000 mm 5 kg 20 kg
