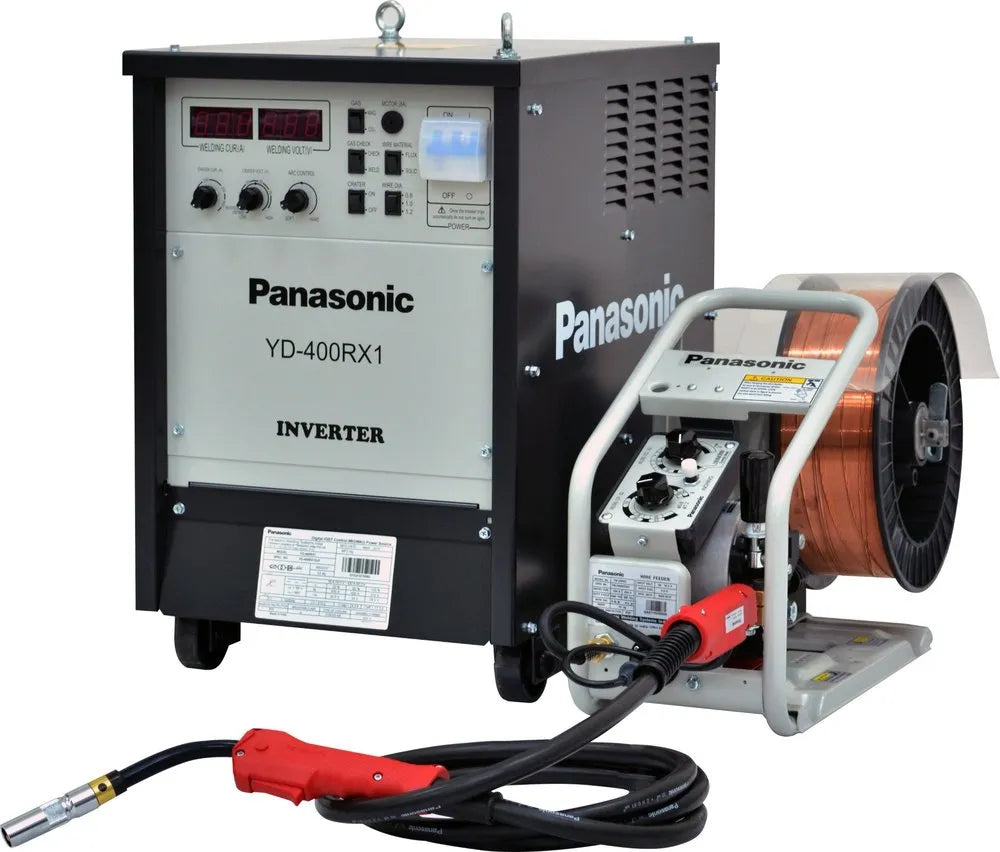

Panasonic YD-400RX1 IGBT Inverter MIG/MAG Welding Machine

Panasonic YD-400RX1 IGBT Inverter MIG/MAG Welding Machine

Rs. 94,000

PANASONIC

WELDING MACHINE

25 In Stock

The Panasonic YD-400RX1 is a powerful 400A IGBT inverter-based MIG/MAG welding machine from Panasonic's advanced RX1 Series, engineered for high-productivity industrial welding. Featuring digitally controlled inverter technology, the YD-400RX1 delivers exceptional arc stability, precise waveform control, reduced spatter, and consistent weld quality for demanding fabrication applications.

Designed for continuous industrial operation, this machine incorporates a 4-digit 7-segment LED display, digitally controlled waveform, crater welding function, and a high-performance wire feeder to maximize welding efficiency. Its robust construction, energy-efficient design, and reliable performance make it ideal for heavy fabrication, structural steel, automotive manufacturing, shipbuilding, and engineering industries.

Key Features

  • Advanced IGBT Inverter-Based Technology
  • 400 Amp Industrial MIG/MAG Welding Machine
  • Digitally Controlled Waveform
  • Stable & Smooth Welding Arc
  • 4-Digit 7-Segment LED Display
  • Main Welding & Crater Welding Modes
  • Crater Repeat Function
  • High-Speed Precision Wire Feeding
  • Excellent Arc Stability
  • Low Spatter Welding
  • Energy-Efficient Operation
  • Forced Air Cooling
  • Heavy-Duty Industrial Construction
  • Reliable Continuous Production Performance
  • Panasonic Industrial Quality

Technical Specifications

Specification YD-400RX1
Input Voltage 415V (+10%, -20%)
Phase / Frequency 3 Phase / 50–60 Hz
Max. Input @ 60% Duty Cycle 16.2 kVA / 15.6 kW
Rated Current Range 50–400 A
Rated Output Voltage 16.5–35.5 V
Welding Current @ 60% Duty Cycle 400 A
Welding Current @ 100% Duty Cycle 310 A
Power Control Method IGBT Inverter Controlled
Digital Display 4 Digit-7 Segment LED Display
Waveform Control Digitally Controlled Waveform
Welding Sequence Main Welding; Main Welding + Crater (Crater Repeat Available)
Ingress Protection IP23
Insulation Class H
Cooling Method Forced Air Cooling
Power Factor > 0.9
Operating Temperature -10°C to 50°C
Dimensions (L × W × H) 545 × 380 × 570 mm
Weight 52 kg

Wire Feeder Specifications

Specification Value
Rated Welding Current 400 A
Applicable Wire Diameter 0.8 mm, 1.0 mm, 1.2 mm
Cable Length 1.8 m (Gas Hose 4.8 m)
Weight 10.5 kg
Wire Feed Speed 5.3–20.1 m/min
Duty Cycle 60%

Welding Torch (YT-40CS4)

Specification Value
Rated Welding Current 350 A
Duty Cycle (10 Min.) 350 A @ 60% (CO₂)
350 A @ 35% (CO₂ + Ar)
Continuous Duty 270 A @ 100% (CO₂)
200 A @ 100% (CO₂ + Ar)
Applicable Wire Diameter 0.8 mm, 1.0 mm, 1.2 mm
Cable Length 3 m
Weight (Including Cable) 2.8 kg

Ordering Information

Component Model
Power Source YD-400RX1DJF
Wire Feeder YW-40KB3DAL
Welding Torch YT-40CS4DAF
Remote Management Controller TSMYU290

Stainless Steel MIG/MAG Welding Configuration

Component Model
Power Source YD-400RX1DJS – Stainless steel welding model (0.8 mm / 1.2 mm solid SS wire, solid MS wire & FCAW)
Wire Feeder YW-40KBA3DAE
Welding Torch YT-40CS4DAF

Applications

  • Heavy Fabrication
  • Structural Steel Fabrication
  • Shipbuilding
  • Automotive Manufacturing
  • Railway Fabrication
  • Pressure Vessel Manufacturing
  • Industrial Equipment Manufacturing
  • Engineering Workshops
  • General Manufacturing
  • Maintenance & Repair Industries

Package Contents

  • Panasonic YD-400RX1 Power Source
  • Panasonic Wire Feeder
  • Panasonic MIG Welding Torch
  • Interconnecting Cable Set
  • Gas Hose
  • Earth Cable
  • User Manual

Why Choose Panasonic YD-400RX1?

  • Advanced IGBT inverter technology for superior welding performance
  • Digitally controlled waveform for consistent weld quality
  • Smooth, stable arc with reduced spatter
  • High productivity for continuous industrial applications
  • Durable and reliable Panasonic engineering
  • Energy-efficient operation with low maintenance
  • Compact design for easy installation and operation
