Short Description

Weldcraft 54N14 No. 8 TIG Welding Ceramic Nozzle made from heat-resistant alumina ceramic. Designed as a gas-lens nozzle for compatible TIG torches in the 17, 18 and 26 series.

Product Description

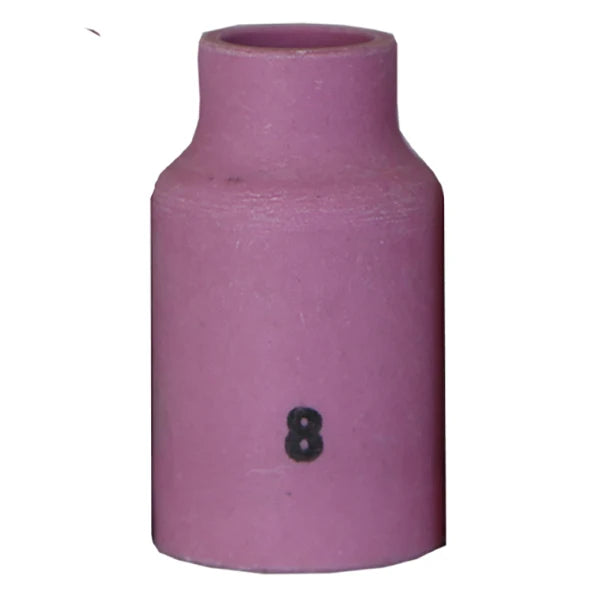

The Weldcraft 54N14 No. 8 TIG Ceramic Nozzle is a standard-size alumina ceramic gas-lens cup designed for TIG/GTAW welding applications. Its 1/2-inch (approximately 12.5–12.7 mm) nozzle opening helps provide effective shielding-gas coverage around the tungsten electrode and weld pool.

The 54N14 is commonly used with compatible WP-17, WP-18 and WP-26 TIG torch assemblies and other compatible 17/18/26-series torch configurations.

The alumina ceramic construction is designed to withstand the heat generated during TIG welding while directing shielding gas toward the weld area. Gas lenses can also help improve gas coverage and allow greater tungsten extension when the correct setup is used.

Key Features

• Brand: Weldcraft
• Part Number: 54N14
• Nozzle Size: No. 8
• Nominal Diameter: 1/2 inch / approx. 12.5–12.7 mm
• Length: Approx. 42 mm / 1-5/8 inch
• Material: Alumina Ceramic
• Type: TIG Gas Lens Ceramic Nozzle
• Welding Process: TIG / GTAW
• Application: TIG torch consumable
• Compatible Torch Series: 17, 18 and 26 series
• Heat-resistant ceramic construction
• Designed for controlled shielding-gas coverage

Compatibility

Suitable for compatible:

• WP-17 TIG torches
• WP-18 TIG torches
• WP-26 TIG torches
• 17 Series
• 18 Series
• 26 Series

The 54N14 is also listed for several related Weldcraft/Miller torch configurations. Always verify the torch model and front-end setup before ordering.

Specifications

Applications

• TIG welding
• Stainless steel welding
• Aluminium welding
• Mild steel fabrication
• Precision TIG welding
• Pipe welding
• General fabrication
• Welding workshop maintenance
• TIG torch consumable replacement

Package Contents

1 × Weldcraft 54N14 No. 8 TIG Ceramic Gas Lens Nozzle

If your actual stock is the 10-piece pack shown in the earlier photo, change this to 10 × Weldcraft 54N14 No. 8 TIG Ceramic Gas Lens Nozzles. Some 54N14 listings are specifically sold as packs of 10.
