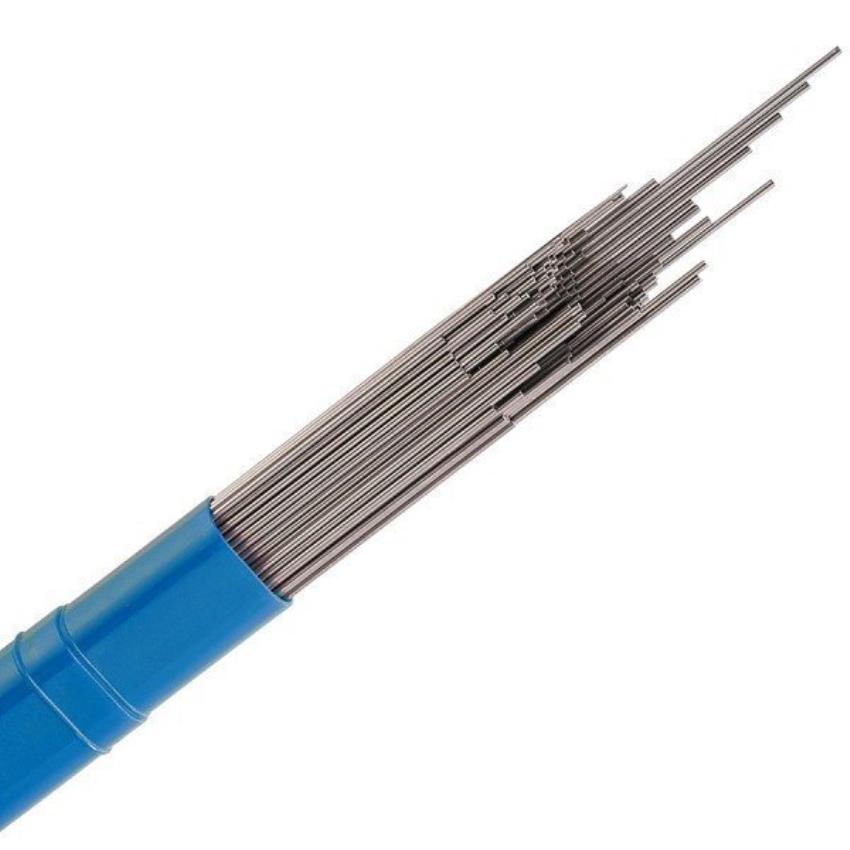

ALFA ER410 Stainless Steel TIG Welding Filler Rod

ALFA ER410 Stainless Steel TIG Welding Filler Rod

Rs. 0

ALFA

Tig Welding Wire

500 In Stock

ALFA ER410 Stainless Steel TIG Welding Filler Rod is a solid TIG welding wire depositing martensitic stainless steel weld metal. The deposited weld metal provides resistance to corrosion, oxidation, and hydrogen attack. It is suitable for welding stainless steel grades 410 and 403, as well as CA 15 cast stainless steel.

Product Specifications

Specification Details
Brand ALFA
Product Name ALFA ER410 Stainless Steel TIG Welding Filler Rod
Identification ER410
Product Type Stainless Steel TIG Welding Filler Rod
Classification AWS/SFA 5.9: ER410
Weld Metal Type Martensitic Stainless Steel
Welding Process TIG / GTAW
Shielding Gas Pure Argon
Corrosion Resistance Resistant
Oxidation Resistance Resistant
Hydrogen Attack Resistance Resistant
Standard Length 1000 mm
Available Sizes 1.6, 2.0, 2.40/2.50, 3.15/3.20 mm
Packing / Packet 5 kg
Packing / Box 20 kg

Chemical Composition

Element Range / Maximum
Carbon (C) 0.06% Max
Manganese (Mn) 0.6% Max
Silicon (Si) 0.25–0.50%
Sulphur (S) 0.03% Max
Phosphorus (P) 0.03% Max
Chromium (Cr) 11.5–13.5%
Nickel (Ni) 0.6% Max
Molybdenum (Mo) 0.50% Max
Copper (Cu) 0.50% Max



Mechanical Properties

Property Value
Ultimate Tensile Strength (UTS) 550–700 MPa
Elongation (L=4D) 20–28%
Weld Metal Hardness 330–390 Brinell

Typical Applications

  • Welding of stainless steel grade 410
  • Welding of stainless steel grade 403
  • Welding of CA 15 cast stainless steel
  • Surfacing carbon-manganese steel
  • Surfacing low-alloy steel
  • Surfacing stainless steel
  • Chemical industry applications
  • Petrochemical applications
  • Refinery applications

Packing Details

Diameter Length Packing / Packet Packing / Box
1.6 mm 1000 mm 5 kg 20 kg
2.0 mm 1000 mm 5 kg 20 kg
2.40 / 2.50 mm 1000 mm 5 kg 20 kg
3.15 / 3.20 mm 1000 mm 5 kg 20 kg
