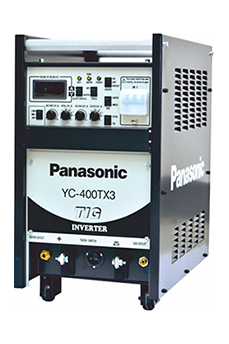

Panasonic YC-400TX3 IGBT DC TIG Welding Machine

Panasonic YC-400TX3 IGBT DC TIG Welding Machine

Rs. 0

PANASONIC

WELDING MACHINE

25 In Stock

The Panasonic YC-400TX3 is a premium 400A IGBT inverter-controlled DC TIG welding machine designed for precision welding in demanding industrial applications. Built with Panasonic's advanced inverter technology, it delivers exceptional arc stability, reliable arc starting, and outstanding weld quality on stainless steel, mild steel, copper alloys, titanium, and other DC TIG-compatible materials.

Featuring low and mid-frequency pulse control, adjustable pulse width, crater current control, spot welding functionality, and superior waveform control, the YC-400TX3 offers maximum flexibility for fabrication, pipe welding, pressure vessel manufacturing, and heavy engineering. Its rugged construction, anti-electric shock function, and IP23 protection ensure dependable operation even in harsh industrial environments.

Key Features

  • Advanced IGBT Inverter Technology
  • 400A DC TIG Welding Machine
  • High-Frequency Arc Start
  • Stable Arc at Low Current (4A)
  • Low & Mid-Frequency Pulse TIG Welding
  • Adjustable Pulse Width & Pulse Frequency
  • Spot Welding Function
  • Initial Current & Crater Current Control
  • Adjustable Up-Slope & Down-Slope Time
  • Anti-Electric Shock Function
  • Excellent Arc Stability & Concentration
  • Superior Waveform Control
  • Forced Air Cooling
  • IP23 Protection Class
  • H-Class Insulation
  • Remote Operation Compatible
  • Suitable for Automation with TIG Mate

Technical Specifications

Specification YC-400TX3
Input Voltage 415V ±20%
Power Control Method IGBT Inverter Type
Input Frequency 50/60 Hz
Rated Input Capacity 14.5 kVA / 12.4 kW
Rated Output Current 400 A
Rated Output Voltage 26 V
Duty Cycle 60%
No-Load Voltage Anti-Electric Shock ON: 13V / OFF: 73V
TIG Output Current Range 4–400 A
MMA Output Current Range 20–400 A
TIG Output Voltage Range 10.2–26 V
MMA Output Voltage Range 20.8–36 V
Initial Current 4–400 A
Pulse Current 4–400 A
Crater Current 4–400 A
Up-Slope Time 0–5 sec
Down-Slope Time 0–10 sec
Pre-Flow Time 0.3 sec
Post-Flow Time 2–20 sec
Spot Welding Time 0.2–5 sec
Pulse Frequency 0.5–30 Hz (Low), 10–500 Hz (Mid)
Pulse Width 5–95%
Crater Control ON / OFF / REPEAT
Protection Class IP23
Insulation Class H
Cooling Method Forced Air Cooling
Dimensions (L × W × H) 555 × 327 × 602 mm
Weight 43 kg

Applications

  • Stainless Steel Fabrication
  • Pressure Vessel Manufacturing
  • Petrochemical Plants
  • Power Generation
  • Pharmaceutical Equipment
  • Dairy & Food Processing Equipment
  • Pipe & Tube Welding
  • Heavy Engineering
  • Aerospace Components
  • General Industrial Fabrication

Package Contents

  • Panasonic YC-400TX3 Power Source
  • TIG Torch (Air Cooled)
  • Earth Cable
  • Gas Hose
  • Remote Connector
  • User Manual

Why Choose Panasonic YC-400TX3?

  • High-performance IGBT inverter technology
  • Excellent weld quality with pulse TIG control
  • Reliable arc ignition and stable low-current performance
  • Wide pulse frequency range for precision welding
  • Robust industrial design with operator safety features
  • Suitable for manual and automated TIG welding applications
  • Trusted Panasonic reliability and long service life
