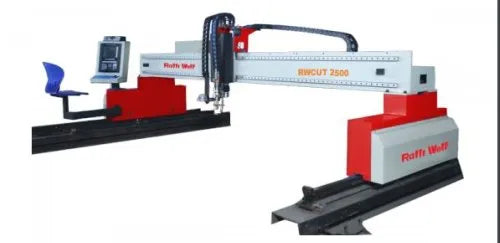

Ralli Wolf RWCUT 2500 CNC Plasma / Flame Cutting Machine

Rs. 2,925,900

RALLI WOLF

Plasma Cutting Machine

20 In Stock

The Ralli Wolf RWCUT 2500 CNC Plasma / Flame Cutting Machine is a heavy-duty gantry-type CNC cutting system designed for precision and efficient cutting of metal materials. It combines plasma and flame cutting capabilities, making it suitable for a wide range of industrial metal fabrication applications.

The machine features a 2500 mm track width, 1800 mm effective cutting width, 8000 mm track length, and 6500 mm effective track length. Its heavy-duty gantry structure, high-tension rail system, dual-side rack and pinion drive, and linear motion guides provide stable and accurate torch movement.

The RWCUT 2500 incorporates Panasonic servo motors and drivers, an FLSK 2300B controller, FastCAM nesting software, IGUS Germany drag chain, and automatic torch height-control systems for plasma and flame cutting. The flame cutting system supports cutting from 7 mm to 100 mm or more, while plasma cutting thickness depends on the selected plasma source.

With anti-collision protection, electrical limit switches, mechanical bumpers, automatic wear compensation, and precision rack-and-pinion motion, the RWCUT 2500 is suited for demanding fabrication, structural steel, and industrial metal-cutting operations.

Key Features

  • Heavy-duty gantry-type CNC cutting machine
  • Combined CNC plasma and flame cutting capability
  • 2500 mm track width
  • 1800 mm effective cutting width
  • 8000 mm overall track length
  • 6500 mm effective track length
  • FLSK 2300B CNC controller
  • Plasma torch lifter station with 1620E Fangling height controller
  • Flame torch lifter station with CHC200F hydraulic height controller
  • Flame torch auto-ignition device included
  • Plasma torch anti-collision device
  • High-tension 24 kg/m rail system
  • Dual-side driven rack-and-pinion longitudinal drive
  • Dual-shaft linear motion guide for transverse movement
  • Automatic wear compensation system
  • Electrical limit switches and mechanical bumpers for collision protection
  • Panasonic 400W servo motors and drivers
  • IGUS Germany drag chain
  • FastCAM Australia nesting software
  • Helical 20 × 20 mm rack and pinion system
  • Planetary-type gearbox

Technical Specifications

Specification Details
Brand Ralli Wolf
Model RWCUT 2500
Machine Type CNC Plasma / Flame Cutting Machine
Track Width 2500 mm
Effective Cutting Width 1800 mm
Track Length 8000 mm
Effective Track Length 6500 mm
Controller FLSK 2300B
Plasma Torch Lifter Station Yes
Plasma Torch Height Controller 1620E (Fangling)
Plasma Torch Anti-Collision Device Yes
Flame Torch Lifter Station Yes
Flame Torch Height Controller CHC200F (HYD)
Flame Cutting Capacity Up to 100 mm
Flame Auto Ignition Included
Solenoid Valve Airtac
Gear Box Planetary Type
X-Axis Servo Motor 1 × 400W Panasonic
X-Axis Servo Driver 1 × 400W Panasonic
Y-Axis Servo Motor 2 × 400W Panasonic
Y-Axis Servo Driver 2 × 400W Panasonic
Drag Chain IGUS, Germany
Nesting Software FastCAM, Australia
X-Axis Linear Motion Guide Dual Guide Ways
Y-Axis Linear Motion Rail 24 kg/m
Rack & Pinion Helical, 20 × 20 mm
Rapid Positioning Speed 0–9999 mm/min
Longitudinal Guiding Accuracy ±0.3 mm / 3 m
Repeatability Accuracy ±0.5 mm
Machine Power Supply AC 220V, Single Phase, ±10%, 50Hz, 2 KVA
Plasma Cutting Power Supply AC 415V, ±10%, 50Hz

Cutting Materials

Flame Cutting:

  • Mild Steel

Plasma Cutting:

  • Mild Steel
  • Stainless Steel
  • Aluminium

Cutting Thickness

  • Flame Cutting: 7 mm – 100 mm or more
  • Plasma Cutting: Depends on the plasma source

Applications

  • Industrial metal fabrication
  • Structural steel cutting
  • Mild steel plate cutting
  • Stainless steel cutting with plasma
  • Aluminium cutting with plasma
  • Heavy fabrication workshops
  • Steel fabrication industries
  • Engineering workshops
  • Industrial machinery manufacturing
  • CNC profile cutting applications
  • Plate preparation and metal processing
  • General-purpose plasma and flame cutting operations
