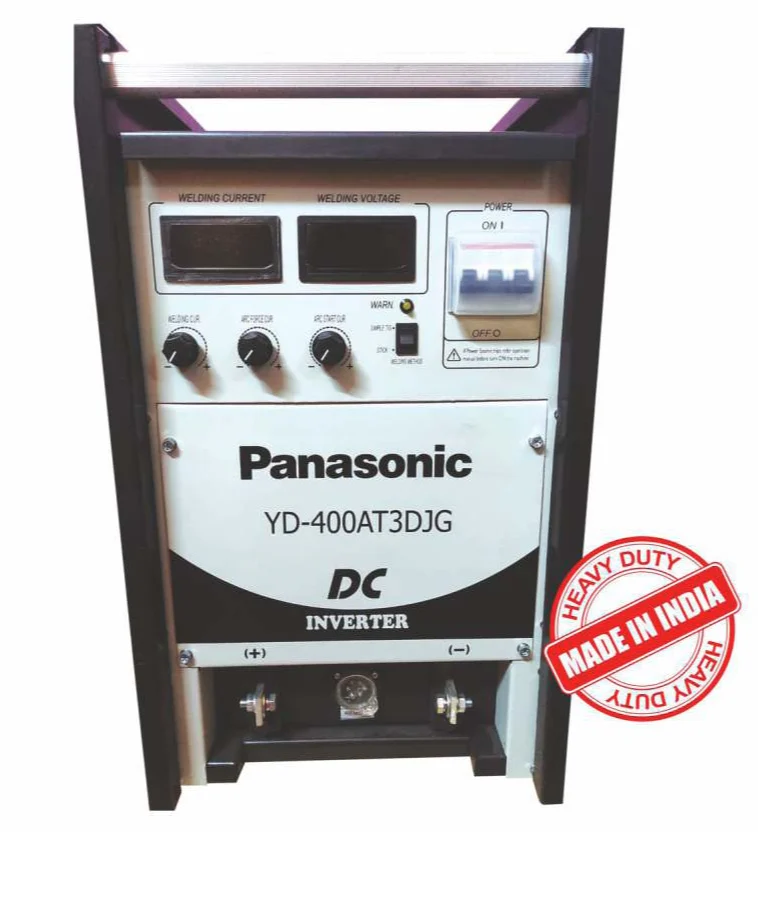

Panasonic YD-400AT3DJG 400A IGBT Inverter MMA Welding Machine with Amp & Volt Display

Panasonic YD-400AT3DJG 400A IGBT Inverter MMA Welding Machine with Amp & Volt Display

Rs. 0

PANASONIC

WELDING MACHINE

25 In Stock

The Panasonic YD-400AT3DJG is a heavy-duty 400A IGBT inverter DC arc (MMA) welding machine engineered for superior performance in industrial fabrication, construction, shipbuilding, and maintenance applications. Built with Panasonic's proven inverter technology, it delivers a stable welding arc, excellent efficiency, and reliable performance even under demanding working conditions.

Designed with a 4-digit 7-segment LED display for both current and voltage, the machine provides accurate parameter monitoring for improved welding quality. The advanced 3-tier and 4-cabinet dust-free structure, combined with hermetically sealed electronic chambers, protects critical components from dust and increases machine life. The integrated Voltage Reduction Device (VRD) enhances operator safety by reducing open-circuit voltage to below 13V DC.

The YD-400AT3DJG also supports Scratch TIG welding, making it a versatile solution for industrial fabrication and repair work.

Key Features

  • 400A IGBT Inverter DC MMA Welding Machine
  • Amp & Volt Digital Display
  • Scratch TIG Welding Capability
  • Voltage Reduction Device (VRD) <13V DC
  • Adjustable Hot Start & Arc Force
  • Stable Arc with Low Spatter
  • IP23 Protection Class
  • H-Class Insulation
  • Forced Air Cooling
  • Over Voltage & Under Voltage Protection
  • Overheating Protection
  • Single Phasing Protection
  • Hermetic Dust-Proof Chamber Design
  • Double Fan Cooling System
  • Suitable for Input Voltage Fluctuation up to ±20%
  • Output Cable Extendable up to 100 m
  • Stackable Industrial Design
  • Wheels for Easy Mobility
  • Made in India

Technical Specifications

Specification YD-400AT3
Rated Input Voltage 415V ±20%
Phase / Frequency 3 Phase / 50–60 Hz
Max. Input @ 60% Duty Cycle 17.6 kVA / 16.7 kW
Rated Current Range 20–410 A
Rated Output Voltage 36V (MMA) / 26V (Scratch TIG)
Voltage Reduction Device (VRD) <13V DC
Welding Current @ 60% Duty Cycle 400 A
Welding Current @ 100% Duty Cycle 310 A
Standards IEC 60974-1:2000 / GB15579.1:2004
Power Control Method IGBT Inverter Controlled
Digital Display 4 Digit, 7 Segment LED (Amp & Volt)
Hot Start & Arc Force Adjustable from Front Panel
Ingress Protection IP23
Insulation Class H
Cooling Method Forced Air Cooling
Power Factor >0.9
Operating Temperature -10°C to 50°C
Air Carbon Arc Gouging Not Supported
Dimensions (L × W × H) 550 × 330 × 600 mm
Weight 43 kg

Applications

  • Structural Steel Fabrication
  • Heavy Engineering
  • Construction Projects
  • Shipbuilding
  • Plant Maintenance
  • Pipeline Construction
  • Power Plants
  • Steel Fabrication
  • Repair & Maintenance Workshops
  • Industrial Manufacturing

Package Contents

  • Panasonic YD-400AT3DJG Power Source
  • Electrode Holder
  • Earth Clamp with Cable
  • Input Cable
  • User Manual

Why Choose Panasonic YD-400AT3DJG?

  • Reliable IGBT inverter technology
  • Digital Amp & Volt display for precise monitoring
  • VRD protection for enhanced operator safety
  • Rugged dust-proof industrial design
  • Stable arc with adjustable Hot Start & Arc Force
  • Scratch TIG capability for added versatility
  • Trusted Panasonic quality and long service life
