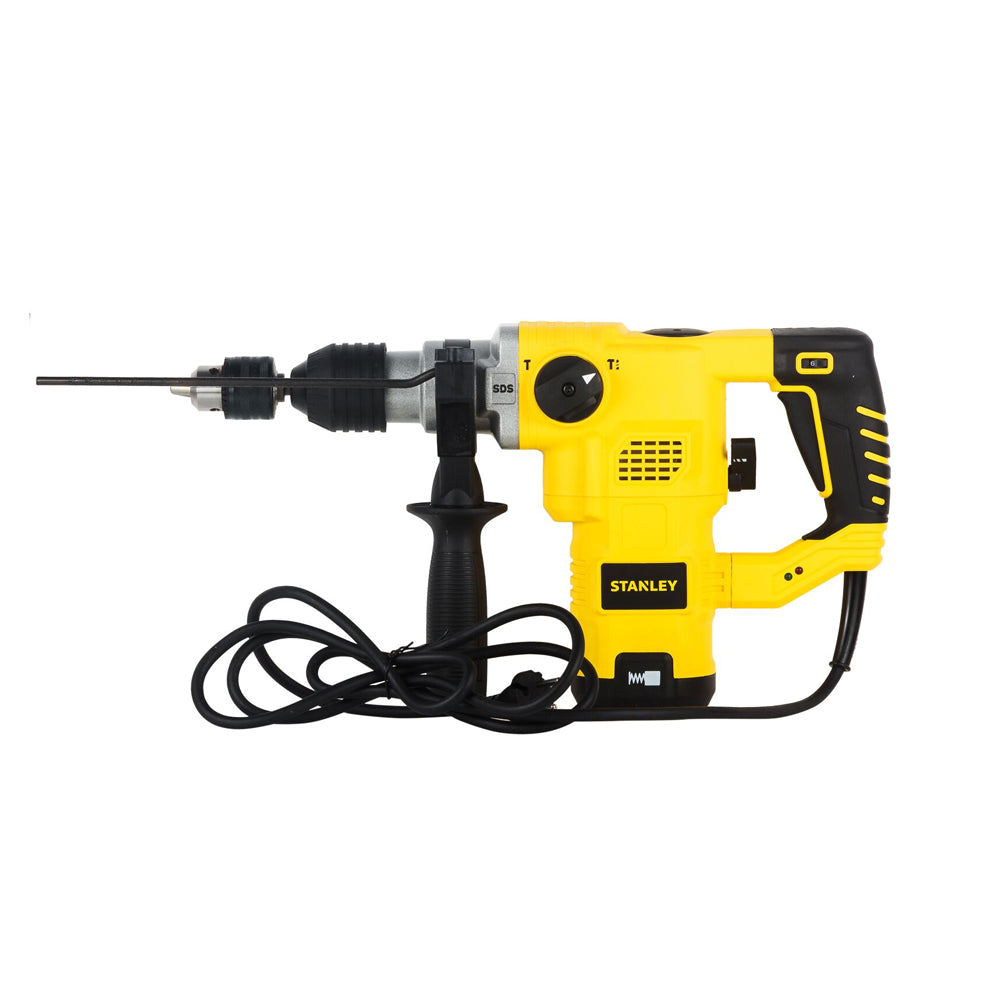

STANLEY ROTARY HAMMER STHR323K SDS PLUS 3 MODE 120W 32MM

The STANLEY STHR323K 32mm 3-Mode L-Shape SDS-Plus Rotary Hammer is a heavy-duty corded rotary hammer designed for professional concrete drilling, masonry drilling, rotary drilling, and chiselling applications. It features a powerful 1250W motor, SDS-Plus tool holder, 3 operating modes, 3.5J impact energy, and a maximum concrete drilling capacity of 32mm.

Its compact L-shape design provides improved control, while electronic variable-speed control allows the operator to adapt the tool to different applications. An overload/safety clutch helps reduce sudden high-torque reaction if the drill bit jams.

Important specification correction: Your title says 120W, but STANLEY's product documentation lists the STHR323K as 1250W. The 120W figure appears to be a typo on some STANLEY regional page headings. For your Shopify listing, 1250W is the appropriate specification.

Product Features

• 1250W Powerful Motor: Delivers strong performance for demanding drilling and chiselling applications.
• 32mm Maximum Concrete Capacity: Designed for anchor and fixing holes in concrete and masonry up to 32mm.
• 3 Operating Modes: Rotary drilling, hammer drilling, and chiselling modes provide versatility for different job-site requirements.
• SDS-Plus Tool Holder: Enables quick fitting of compatible SDS-Plus drill bits and chisels.
• 3.5J Impact Energy: Provides powerful impact performance for concrete and masonry work.
• 0–4100 BPM Impact Rate: Delivers rapid hammer action for efficient material removal and drilling.
• 0–850 RPM No-Load Speed: Provides controlled rotational performance for drilling applications.
• Electronic Variable Speed: Allows improved control across different materials and applications.
• Safety / Overload Clutch: Helps protect the user from sudden high-torque reaction if the bit becomes jammed.
• L-Shape Design: Compact configuration provides improved balance and control.
• Carbon Brush Access: Allows easier access for inspection and replacement.
• Brush/Service Indicators: Helps identify when brush replacement or servicing may be required on applicable variants.
• Side Handle: Provides additional control and stability during heavy-duty applications.
• Kit Box: Provides convenient storage and transportation of the tool.
• Corded Power: Provides continuous operating power for workshop and job-site applications.

Product Specifications

STANLEY's India product page lists 1250W, 4.1J, 2900 impacts/min, 850 RPM and 5.4kg, while its current Asia STHR323K-B5 listing specifies 1250W, 3.5J, 4100 BPM, 850 RPM and 5.4kg. For consistency with the current STHR323K-B5 technical listing, the specifications above use 3.5J / 4100 BPM.

Drilling Capacities

• Concrete: 32mm
• Metal: 13mm
• Wood: 40mm

The 32mm concrete capacity makes the STHR323K suitable for heavy-duty anchor and fixing-hole applications in concrete and masonry.

Operating Modes

1. Rotary Drilling

For conventional drilling applications in suitable materials such as wood and metal when used with the appropriate chuck/accessory.

2. Hammer Drilling

Combines rotation and impact for drilling concrete, masonry and other suitable mineral-based materials.

3. Chiselling

Provides impact-only operation for suitable chiselling, channeling, breaking, and material-removal applications.

Package Contents

Depending on the regional variant, the package can include:

• 1 × STANLEY STHR323K Rotary Hammer
• 1 × Side Handle
• 1 × 13mm Chuck
• 1 × Kit Box
• 1 × Depth Rod / Depth Guide

STANLEY's India listing specifically identifies the side handle, 13mm chuck and kit box, while another STHR323K variant lists a depth rod and kit box.

Applications

The STANLEY STHR323K is suitable for:

• Concrete drilling
• Masonry drilling
• Brick and block drilling
• Anchor-hole drilling
• Fixing-hole drilling
• Chiselling
• Concrete breaking and material removal
• Construction work
• Electrical installation
• Plumbing installation
• HVAC installation
• Mechanical maintenance
• Industrial maintenance
• Professional workshop applications
