RILON AC/DC 500P IGBT AC/DC INVERTER BASED WELDING MACHINE

RILON AC/DC 500P IGBT AC/DC INVERTER BASED WELDING MACHINE

Rs. 189,390 Rs. 265,146

RILON

WELDING MACHINE

100 In Stock

Add to wishlist

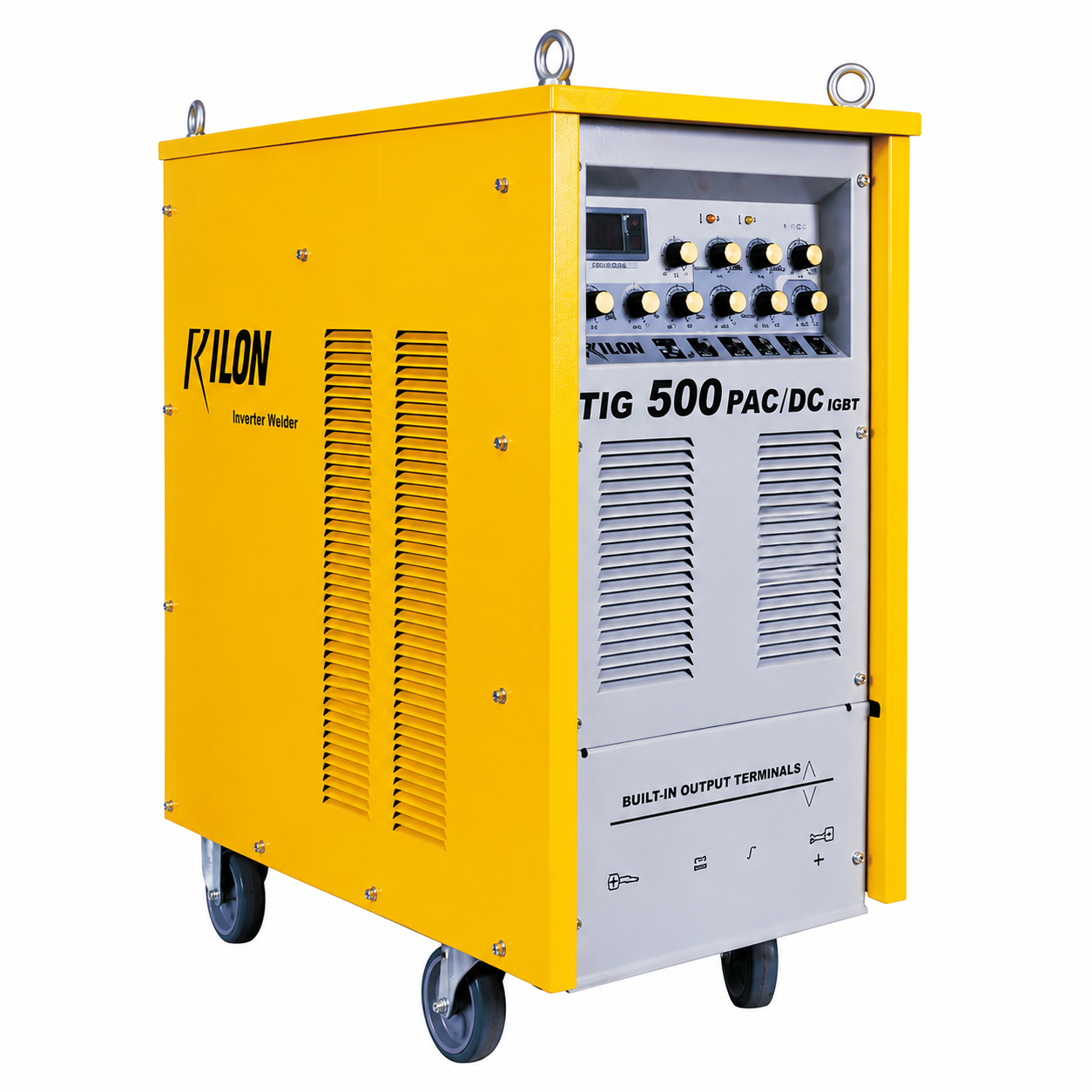

Rilon TIG 500P AC/DC Heavy Industrial Inverter Welding Machine

he Rilon TIG 500P AC/DC is a heavy-duty industrial inverter welding machine designed for precision AC/DC TIG welding and MMA (Stick) welding. Built for medium and heavy fabrication industries, it delivers stable arc performance, adjustable pulse settings, and high-duty cycle output for continuous production.

Ideal for welding aluminium, stainless steel, mild steel, copper, titanium, magnesium, and other non-ferrous metals, the TIG 500P AC/DC provides superior weld quality with advanced inverter IGBT technology.

Whether you're working in fabrication shops, pressure vessel manufacturing, shipbuilding, aerospace, heavy engineering, or industrial maintenance, this machine delivers professional-grade performance.

Key Features

  • Heavy Industrial 500A AC/DC TIG Welding Machine
  • Advanced IGBT Inverter Technology
  • AC TIG, DC TIG, Pulse TIG & MMA Welding
  • 3 Phase 380V Power Supply
  • High Duty Cycle for Continuous Industrial Use
  • Adjustable Pulse Frequency & Pulse Width
  • Adjustable AC Balance
  • Adjustable Start Current & Crater Current
  • Adjustable Peak Current & Background Current
  • Adjustable Up Slope & Down Slope
  • Adjustable Post Gas Flow
  • 2T / 4T Trigger Mode
  • Remote Control Compatible
  • Stable Arc with Low Spatter
  • Tri-proof Air Duct Design
  • Suitable for Heavy Plate Welding

Welding Processes

  • AC TIG Welding
  • DC TIG Welding
  • Pulse TIG Welding
  • MMA (Stick Welding)
  • Remote Control Operation

Technical Specifications

Specification Details
Model Rilon TIG 500P AC/DC
Input Voltage 380V
Phase 3 Phase
Frequency 50/60Hz
TIG Output 20–500A
MMA Output 20–340A
Open Circuit Voltage 66.5V
Rated TIG Output 500A @ 30V (60% Duty Cycle)
Duty Cycle Up to 100% at Reduced Output
Input Current 33.9A @ 500A
Dimensions 760 × 380 × 820 mm
Weight 80 kg

Package Includes

  • Rilon TIG 500P AC/DC Inverter Power Source
  • 4 Meter TIG Torch
  • 3 Meter Earth Clamp
  • Cerium Tungsten Electrode

Applications

Perfect for:

  • Aluminium Fabrication
  • Stainless Steel Fabrication
  • Pressure Vessel Manufacturing
  • Shipbuilding
  • Heavy Engineering
  • Aerospace Components
  • Industrial Maintenance
  • Structural Fabrication
  • Automotive Manufacturing
  • Metal Fabrication Workshops

Why Choose the Rilon TIG 500P AC/DC?

The Rilon TIG 500P AC/DC combines industrial-grade durability with advanced welding controls, allowing professionals to achieve precise, clean welds on both ferrous and non-ferrous materials. Its high-duty cycle, pulse technology, and AC/DC functionality make it a reliable solution for demanding industrial applications.
