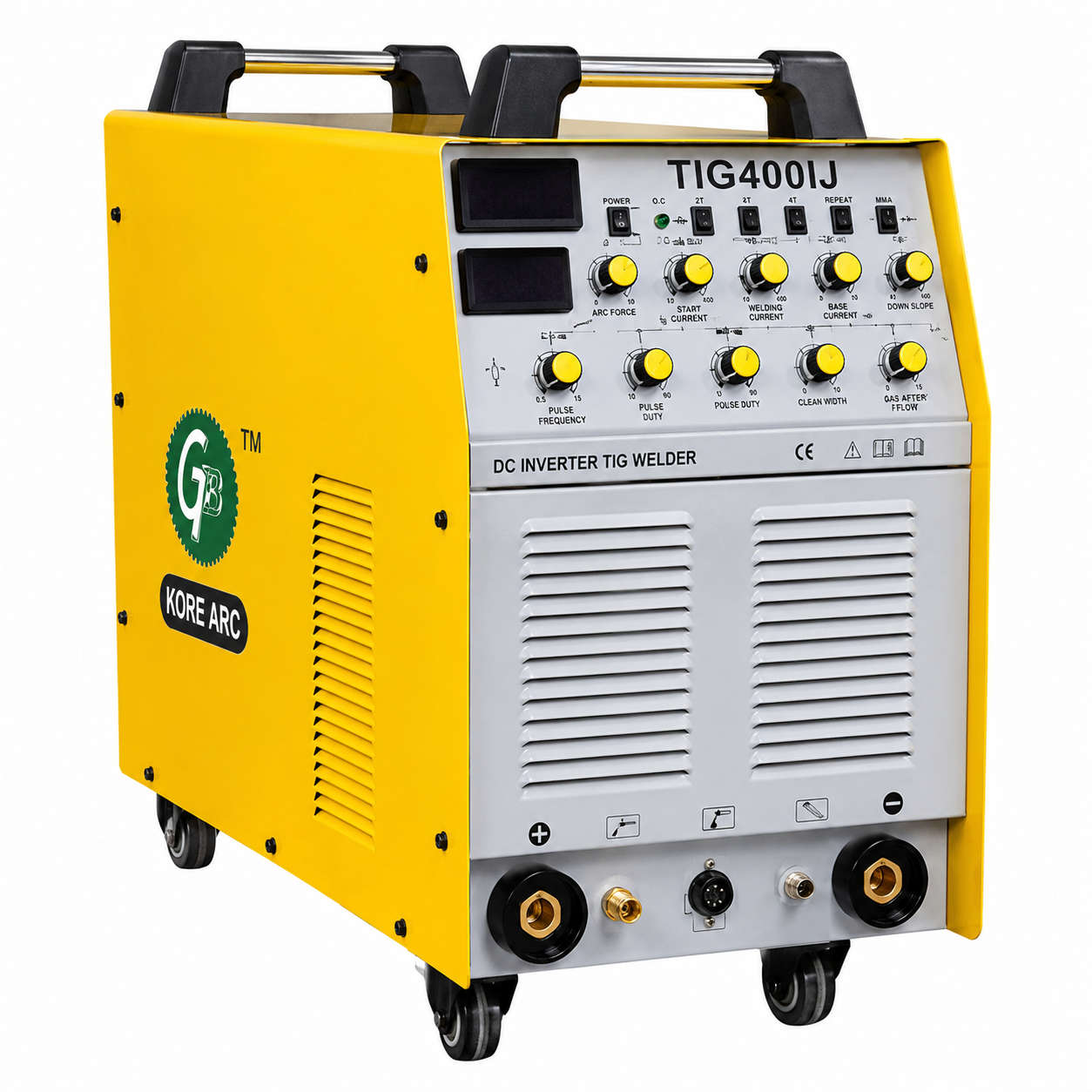

GB KORE ARC TIG 400 IJ Industrial Pulse TIG Welding Machine

The GB KORE ARC TIG 400 IJ is a high-performance 3-phase industrial Pulse TIG and MMA welding machine designed for precision welding in demanding fabrication environments. Equipped with advanced inverter technology and High Frequency (HF) arc initiation, it delivers exceptional arc stability, superior weld quality, and excellent energy efficiency.

With independently adjustable pulse parameters including arc initiation current, arc stop current, welding current, and basic current, the TIG 400 IJ provides complete control for welding stainless steel, carbon steel, copper, and other non-ferrous metals. It is ideal for heavy fabrication, pressure vessels, industrial manufacturing, and engineering applications.

Key Features

  • Multi-Function TIG & MMA Welding
  • Advanced Pulse TIG Technology
  • High Frequency (HF) Arc Start
  • Independently Adjustable Pulse Parameters
  • Adjustable Arc Start & Arc Stop Current
  • Adjustable Basic Current & Welding Current
  • Pulse Frequency Adjustment
  • Suitable for Stainless Steel, Carbon Steel & Copper
  • Over 85% Machine Efficiency
  • Energy Saving up to 55%
  • Heavy-Duty Industrial Construction
  • Excellent Arc Stability and Welding Finish

Technical Specifications

Specification Details
Model TIG 400 IJ
Brand GB KORE ARC
Input Voltage 3 Phase AC 415V ±15%
Frequency 50/60 Hz
Rated Input Current 25.3A
No Load Voltage 80V
Output Current Range 20–400A
Rated Working Voltage 10.4–26V (TIG)
Duty Cycle 60%
No-load Loss 100W
Arc Start High Frequency (HF)
Efficiency 85%
Power Factor 0.93
Insulation Class H
Protection Class IP21S
Weight 34 kg
Dimensions 560 × 300 × 550 mm
Pulse Frequency 0.5–15Hz (Low), 14–450Hz (Medium)
Current Ascending Time 0–10 sec
Current Descending Time 0–10 sec
Basic Current 10–400A
Arc Initiation Current 10–400A
Arc Stop Current 10–400A
Gas Post Flow 1–10 sec
Pulse Duty Cycle 10–90%

Recommended Welding Capacity

Parameter Value
TIG Plate Thickness 2.0–24.0 mm
Electrode Diameter 1.6–6.0 mm
Current Range 20–400A

Applications

  • Stainless Steel Fabrication
  • Carbon Steel Welding
  • Copper Fabrication
  • Heavy Engineering
  • Pressure Vessel Manufacturing
  • Pipe Fabrication
  • Industrial Workshops
  • Structural Fabrication
  • Manufacturing Plants
  • Maintenance & Repair

Package Includes

  • GB KORE ARC TIG 400 IJ Welding Machine
  • TIG Torch
  • Earth Clamp with Cable
  • Electrode Holder
  • Gas Hose
  • User Manual

Why Choose GB KORE ARC TIG 400 IJ?

The GB KORE ARC TIG 400 IJ is built for professionals requiring precision, durability, and high productivity. With advanced pulse control, HF arc ignition, and a 400A output, it delivers outstanding welding performance for heavy-duty industrial applications.
