Short Description

The Bosch Professional PRO GTC 600 C is a high-resolution thermal imaging camera designed for professional inspection and troubleshooting. With 49,152 infrared measuring points, a wide -20°C to +600°C temperature range, voice notes, Wi-Fi connectivity and Bosch ThermalOn app support, it is ideal for detecting insulation problems, hot and cold spots and temperature abnormalities.

Product Description

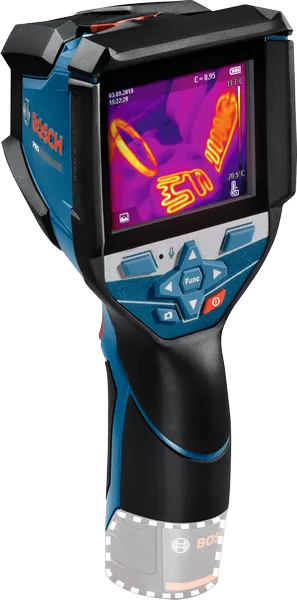

The BOSCH Professional PRO GTC 600 C is a professional thermal camera designed to quickly identify and visualise temperature differences in buildings, electrical systems, heating installations and industrial applications.

Its 256 × 192 pixel infrared sensor provides 49,152 measuring points, delivering detailed thermal images for accurate inspection. The camera has a temperature measurement range from -20°C to +600°C and IR measuring accuracy of ±2.0°C.

The GTC 600 C features a 3.5-inch display, thermal image refresh rate of 9 Hz and thermal sensitivity of ≤50 mK. Integrated voice-note functionality allows users to add audio information to thermal images for easier documentation.

With Wi-Fi and USB-C® data transfer, thermal images can be documented and shared using Bosch's ThermalOn app and GTC Transfer Software. The camera can store up to 600 images, or up to 350 images with audio.

Key Features

• Bosch Professional PRO GTC 600 C
• Professional thermal imaging camera
• Temperature range: -20°C to +600°C
• 256 × 192 pixel IR sensor
• 49,152 measuring points
• Thermal sensitivity: ≤50 mK
• IR measuring accuracy: ±2.0°C
• Thermal image refresh rate: 9 Hz
• 3.5-inch display
• 0.1°C resolution
• Integrated voice-note function
• Wi-Fi connectivity
• USB-C® connectivity
• Bosch ThermalOn app support
• GTC Transfer Software compatibility
• Stores up to 600 thermal images
• Stores up to 350 images with audio
• IP54 dust and splash-water protection
• 2 m drop resistance
• Minimum focus distance: 0.3 m

Technical Specifications

Applications

• Electrical system inspection
• Detecting overheated electrical components
• Building insulation inspection
• Finding thermal bridges
• Detecting hot and cold spots
• Heating system inspection
• HVAC troubleshooting
• Plumbing inspection
• Preventive maintenance
• Industrial equipment inspection
• Building maintenance
• Professional thermal documentation

Product Benefits

High Thermal Resolution
The 256 × 192 IR sensor delivers 49,152 measuring points for detailed thermal imaging and improved identification of temperature differences.

Wide Temperature Range
The GTC 600 C measures temperatures from -20°C to +600°C, allowing it to handle a wide variety of professional inspection tasks.

Voice Notes for Documentation
Add voice notes directly to thermal images to record important observations while inspecting a site. Bosch supports up to 350 images with audio in the frame buffer.

ThermalOn App Connectivity
Wi-Fi and USB-C connectivity enable convenient transfer, documentation and sharing of thermal measurements through Bosch software and the ThermalOn app.

Built for Jobsites
The camera is rated IP54 and can withstand drops from up to 2 metres, making it suitable for demanding professional environments.

Package Includes

For the Bosch India 0 601 083 5K1 variant, Bosch lists:

• 1 × Bosch Professional PRO GTC 600 C
• 1 × Carrying Bag
• 1 × USB-C® Cable
• 1 × Manufacturer's Certificate

Important: The India 5K1 variant does not list a battery or charger as included. Bosch also lists other regional GTC 600 C packages with a 12V 2.0Ah battery and charger, so verify your actual stock variant before publishing those accessories as included.
