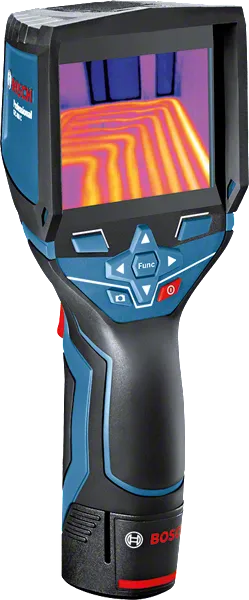

The BOSCH Professional PRO GTC 400 C makes thermal inspection faster and easier by visualising temperature differences in seconds. It combines thermal imaging with a real-image view to help users accurately identify the location of temperature variations.

Its 160 × 120 pixel infrared sensor provides 19,200 measuring points, while the Picture-in-Picture function overlays thermal and real images to make temperature differences easier to locate.

The camera measures temperatures from -10°C to +400°C, with an IR measuring accuracy of ±3.0°C and thermal sensitivity of ≤50 mK. The 3.5-inch display provides a clear view of thermal images and measurement information.

The GTC 400 C supports Wi-Fi and MicroUSB data transfer, allowing thermal images to be documented and shared efficiently. The Bosch ThermalOn app supports convenient documentation and forwarding of measured thermal data.

Key Features

• Bosch Professional PRO GTC 400 C
• Professional thermal imaging camera
• Temperature measurement range: -10°C to +400°C
• 160 × 120 pixel IR sensor
• 19,200 measuring points
• Thermal sensitivity: ≤50 mK
• IR measurement accuracy: ±3.0°C
• 0.1°C resolution
• Picture-in-Picture technology
• Thermal image measurement
• 3.5-inch display
• Wi-Fi and MicroUSB data transfer
• Bosch ThermalOn app support
• Stores up to 500 images
• Internal memory
• JPG image format
• IP53 dust and splash protection
• Dual power system
• Minimum focus distance: 0.3 m

Technical Specifications

Applications

• Electrical inspection
• Detecting overheated components
• Heating system inspection
• Insulation inspection
• Heat-flow analysis
• Finding thermal bridges
• Building maintenance
• HVAC inspection
• Plumbing and heating troubleshooting
• Preventive maintenance
• Professional project documentation

Product Benefits

Fast Thermal Inspection
The GTC 400 C quickly measures and visualises temperature differences, helping professionals identify potential problems without physical contact.

High-Detail Thermal Imaging
The 160 × 120 IR sensor provides 19,200 measuring points for detailed thermal images.

Picture-in-Picture Technology
Thermal and real images can be overlaid, helping users locate the exact position of temperature differences more easily.

Bosch ThermalOn App
The ThermalOn app enables convenient documentation and sharing of thermal images and measured values.

Flexible Power System
The GTC 400 C can operate using a Bosch 12V Li-ion battery or standard AA alkaline batteries, providing flexibility on the jobsite.

Professional Jobsite Protection
Its IP53-rated housing provides protection against dust and splash water for demanding working conditions.

Package Includes

For Bosch India variant 0 601 083 150, Bosch lists:

• 1 × Bosch Professional PRO GTC 400 C
• Micro USB cable
• AA1 alkaline battery adapter
• Protective bag
• Hand strap
• 4 × 1.5V LR6 (AA) batteries

Note: Bosch's flexible power system also supports compatible Bosch 12V/10.8V Li-ion batteries, but these are not listed as included in this specific India package.
