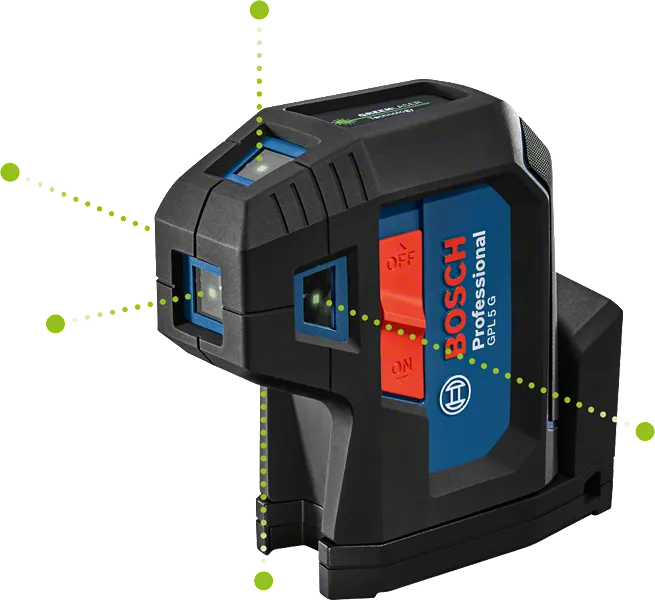

Bosch Professional PRO GPL 5 G Point Laser

Bosch Professional PRO GPL 5 G Point Laser

Rs. 22,490

BOSCH

Thermal Cameras and Detectors

50 In Stock

The BOSCH Professional PRO GPL 5 G is a professional 5-point green laser designed for precise layout and point-transfer applications. It is particularly suitable for creating and checking 90° angles, transferring reference points from floor to ceiling and positioning room partitions.

Its green laser technology provides up to four times better visibility than red laser points, making the GPL 5 G easier to see in many working conditions. The tool projects five laser points and offers a 30 m working range.

The integrated self-levelling system provides a ±4° self-levelling range, with a levelling time of approximately 4 seconds. A two-position switch allows the pendulum to self-level when switched on and locks it when switched off.

Key Features

  • Bosch Professional PRO GPL 5 G
  • 5-point green laser
  • Green laser points for enhanced visibility
  • Up to 30 m working range
  • ±4° self-levelling range
  • Levelling time: approximately 4 seconds
  • Accuracy: ±0.35 mm/m except bottom point
  • Bottom point accuracy: ±0.7 mm/m
  • IP65 dust and water-jet protection
  • Rubberised housing
  • Recessed glass protection
  • Integrated rotation mount
  • Strong magnets for fast mounting
  • Pendulum lock function
  • Compact and durable professional design

Technical Specifications

Specification Details
Brand Bosch Professional
Model PRO GPL 5 G
Product Type 5-Point Laser
Order Number 0 601 066 P00
Part Number 3601K66P00
Laser Colour Green
Laser Diode 500–540 nm, <1 mW
Laser Class 2
Projection 5 points
Working Range 30 m
Accuracy ±0.35 mm/m, except bottom laser point
Bottom Point Accuracy ±0.7 mm/m
Self-Levelling Range ±4°
Levelling Time 4 s
Protection Rating IP65
Power Supply 2 × 1.5 V LR6 (AA)
Maximum Operating Time 8 hours
Operating Temperature -10°C to +45°C
Storage Temperature -20°C to +70°C
Weight Approx. 0.35 kg

Applications

  • 90° wall layout
  • Room partitioning
  • Drywall framing
  • Plumbing installation
  • Floor-to-ceiling point transfer
  • Ceiling installation
  • Interior construction
  • Building layout
  • Professional levelling and alignment
  • Reference-point transfer

Product Benefits

Highly Visible Green Laser
Green laser points provide up to four times better visibility than red points, helping make reference points easier to identify.

Five-Point Projection
The GPL 5 G projects five precise points, making it suitable for transferring points and establishing right-angle layouts.

Automatic Self-Levelling
The tool automatically self-levels within a ±4° range, helping save time during setup.

Strong Magnetic Mounting
Its integrated rotation mount with strong magnets enables fast and secure attachment to suitable metal surfaces.

IP65 Jobsite Protection
The rubberised housing, recessed glass and IP65 protection help the tool withstand dust and water jets in demanding working conditions.

Package Includes

For Bosch India variant 0 601 066 P00, the package includes:

  • 1 × Bosch Professional PRO GPL 5 G
  • 2 × 1.5 V LR6 (AA) batteries
  • 1 × Pouch
